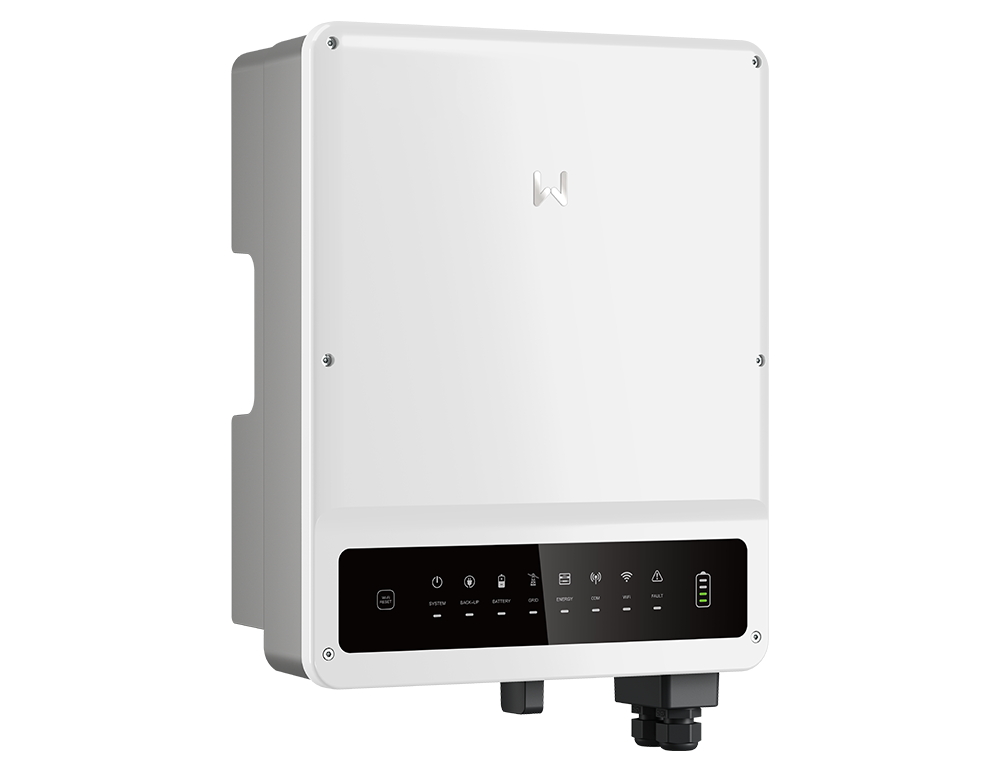

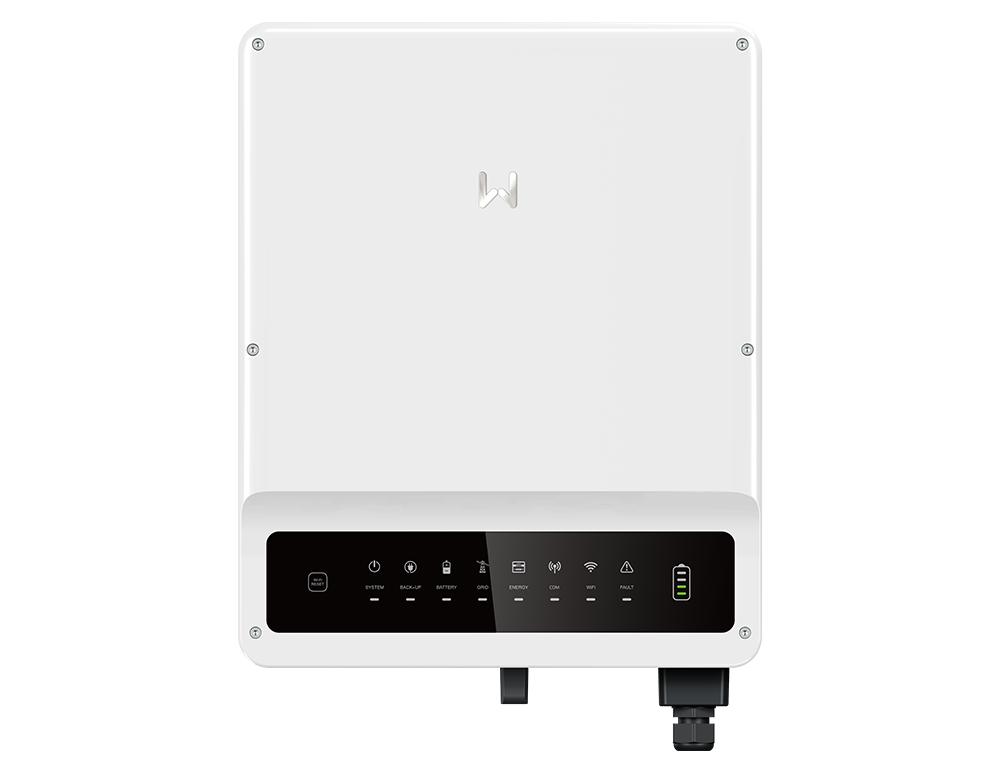

BT Series
Retrofit Battery Inverter I 5-10 kW I Three Phase I HV
DOWNLOAD PDF >>
Fanless & quiet
Elegant & compact
Easy retrofit for optimised energy autonomy
Increasingly, owners of PV systems are looking to expand into energy storage solutions, thereby enabling energy back-up and enhanced independence. Ideal for solar power system upgrades and retrofit projects, the BT battery inverter is installed on the AC-side of the on-grid inverter and can be combined with a range of battery capacities, including GoodWe high-voltage battery series Lynx Home F.
UPS level switching < 10ms
Smart home integration
IP66 ingress protection
Compensates asymmetry Charging/Discharging
Fanless & quiet
Elegant & compact
Optimised Energy Autonomy
High backup output power with overload capability. Wide battery voltage range (180-600V) supports various battery capacities and power.
Wide battery voltage range
Integrated dynamic power export limit
Modern and Compact Design
Elegant and compact design, with a high output without taking up much space. All connections are available on the bottom side of the inverter, making the installation and maintenance easier.
Fanless cooling
Easy to handle
ΕΠΙΣΚΟΠΗΣΗ
Model
GW6K-BT
Battery Voltage Range (V)
180~600
Max. Charging / Discharging Current(A)
25/25
Nominal Output Voltage (V)
400/380, 3L/N/PE
Max. Apparent Power Output to Utility Grid (VA)
6600
Back-up Nominal Apparent Power (VA)
6000
Model
GW8K-BT
Battery Voltage Range (V)
180~600
Max. Charging / Discharging Current(A)
25/25
Nominal Output Voltage (V)
400/380, 3L/N/PE
Max. Apparent Power Output to Utility Grid (VA)
8800
Back-up Nominal Apparent Power (VA)
8000
Model
GW5K-BT
Battery Voltage Range (V)
180~600
Max. Charging / Discharging Current(A)
25/25
Nominal Output Voltage (V)
400/380, 3L/N/PE
Max. Apparent Power Output to Utility Grid (VA)
5500
Back-up Nominal Apparent Power (VA)
5000
Model
GW10K-BT
Battery Voltage Range (V)
180~600
Max. Charging / Discharging Current(A)
25/25
Nominal Output Voltage (V)
400/380, 3L/N/PE
Max. Apparent Power Output to Utility Grid (VA)
11000
Back-up Nominal Apparent Power (VA)
10000
