BTC Series

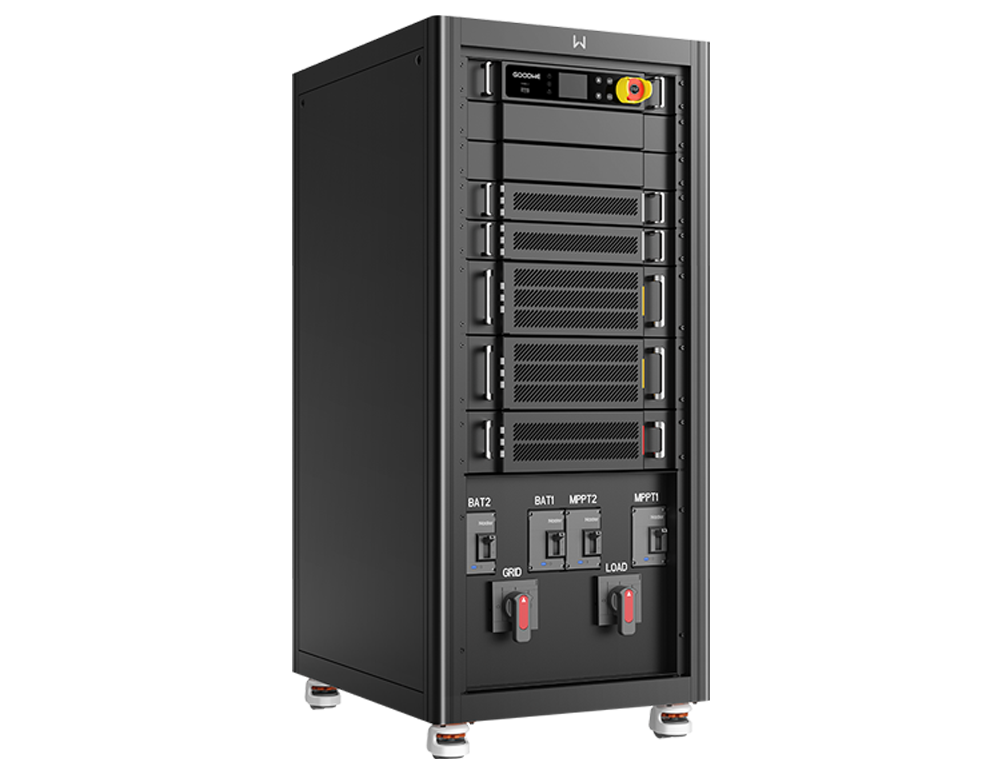

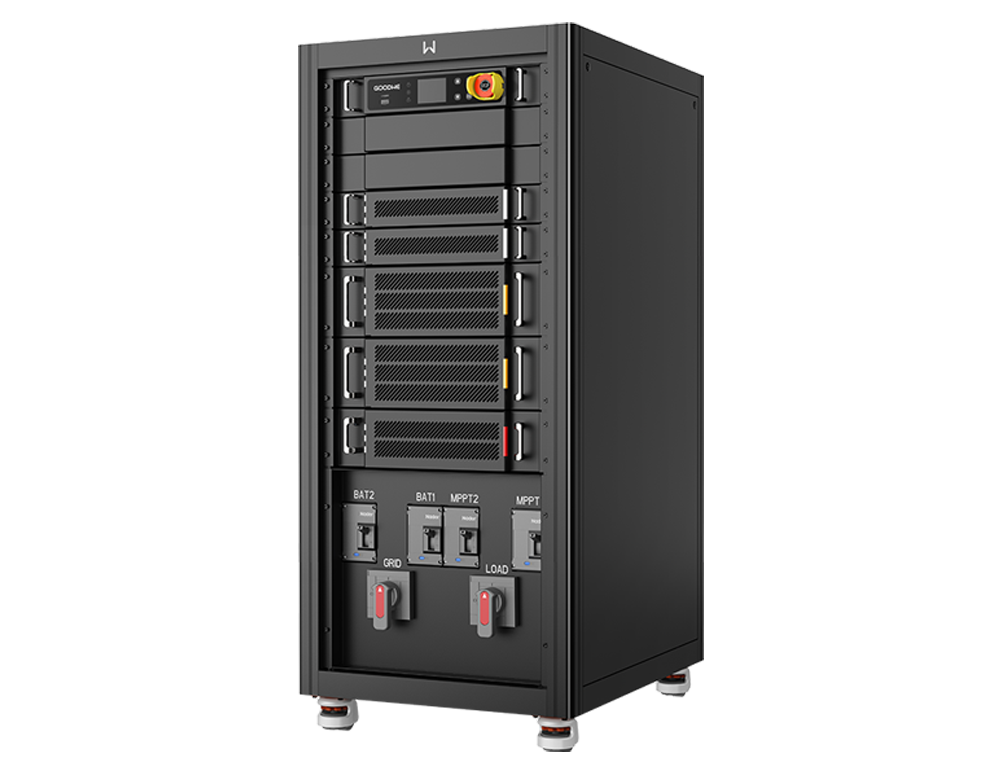

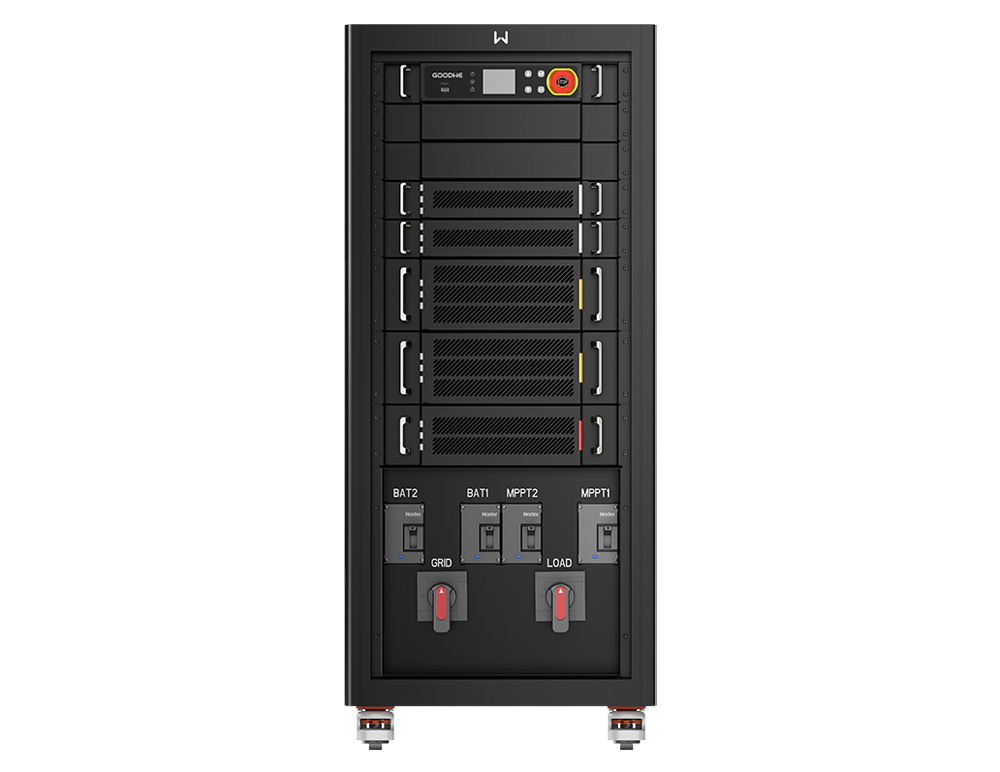

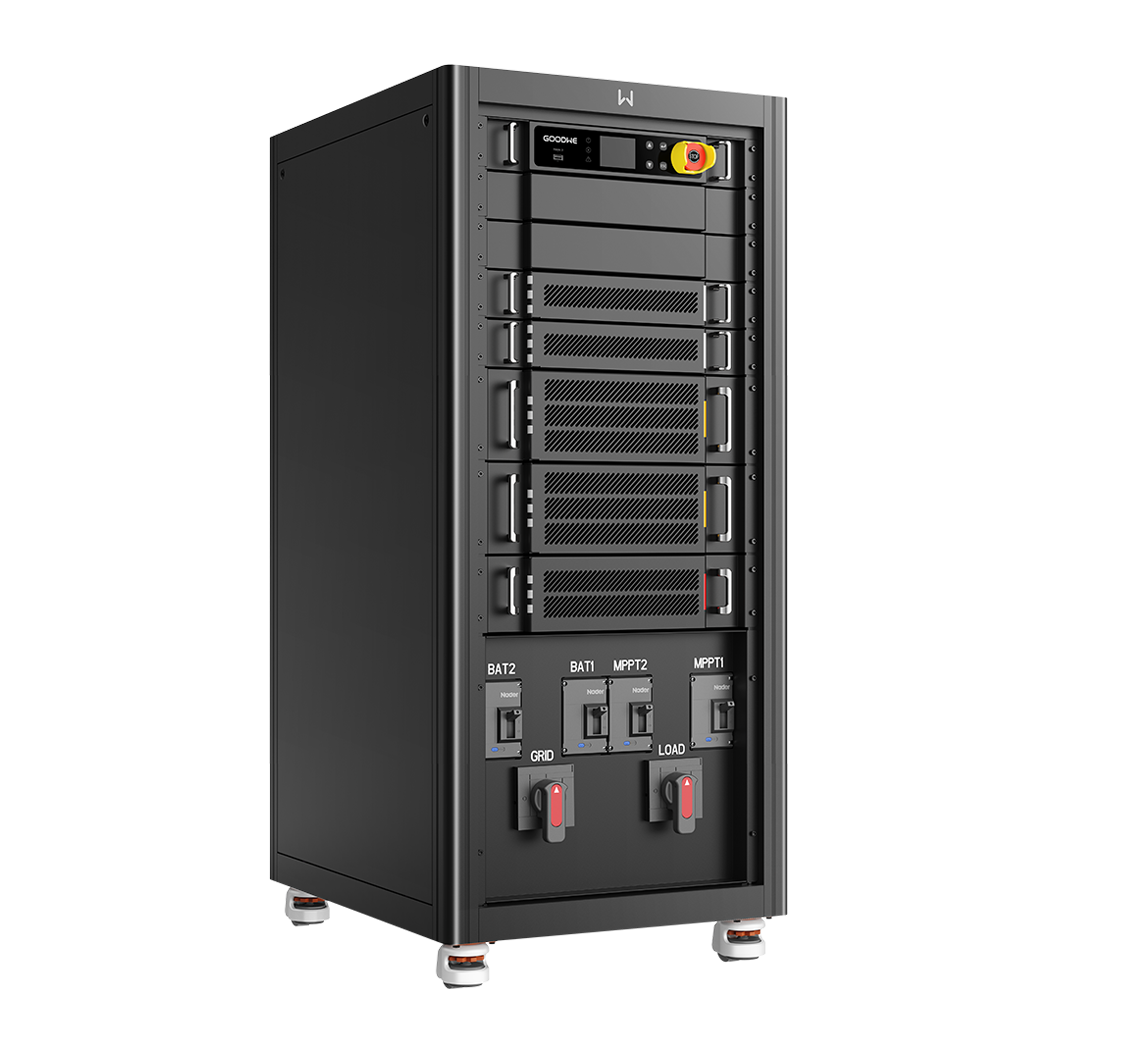

Retrofit Battery Inverter I 50/100 kW I Three-phase I HV
DOWNLOAD PDF >>
Peak-shaving
Back-up
Reduced energy cost and uninterrupted power supply for C&I applications
Commercial and industry (C&I) energy storage solutions can effectively encounter rising energy cost, maintain stable operations, and secure competitiveness. In addition to increased self-consumption, the GoodWe energy storage systems allow users to level out peak demands and avoid additional grid fees. The powerful backup delivers additional value to organisations with a strong reliance on uninterrupted power. The ETC/BTC inverters are designed to be connected exclusively to the GoodWe battery system Lynx C and can be paired with up to three Lynx C batteries per battery input, thereby providing a wide range of battery capacity options for enhanced flexibility.
Peak shaving functionality
Powerful back-up
UPS level switching < 10ms
100% unbalanced power output
Compatible with GoodWe Lynx C battery
Compatible with GoodWe inverters
Peak-shaving
Back-up
Uninterrupted power supply
With the ability to switch to backup mode in less than 10 ms, an uninterruptible power supply is always operational for critical loads.
UPS level switching < 10ms
Black start capability
Safe and efficient operation
The lightning protection on AC side prevents voltage peaks from destroying connected devices and secures system reliability.
Built-in Type II SPD (Type I + II offered as optional configuration)
Black start capability
Lower electricity cost, reduced peak demand
Combined with GoodWe battery system Lynx C (101kWh - 156kWh), the ETC / BTC hybrid inverters enable a high degree of self-consumption. Backed by powerful backup capabilities, unbalanced power output and peak-shaving, the C&I storage system facilitates lower cost while ensuring uninterrupted power.
468
Lynx C battery compatible 101 - 468 kWh
100%
Unbalanced power output
ΕΠΙΣΚΟΠΗΣΗ
Model
GW100K07-BTC
Battery Voltage Range (V)
200~865
Max. Continuous Charging /Discharging Current(A)
100/100
Nominal Output Voltage (V)
400, 3L/N/PE
Max. Apparent Power Output to Utility Grid (VA)
110000
Back-up Nominal Apparent Power (VA)
100000
Model
GW50K07-BTC
Battery Voltage Range (V)
200~865
Max. Continuous Charging /Discharging Current(A)
100/100
Nominal Output Voltage (V)
400, 3L/N/PE
Max. Apparent Power Output to Utility Grid (VA)
55000
Back-up Nominal Apparent Power (VA)
50000
