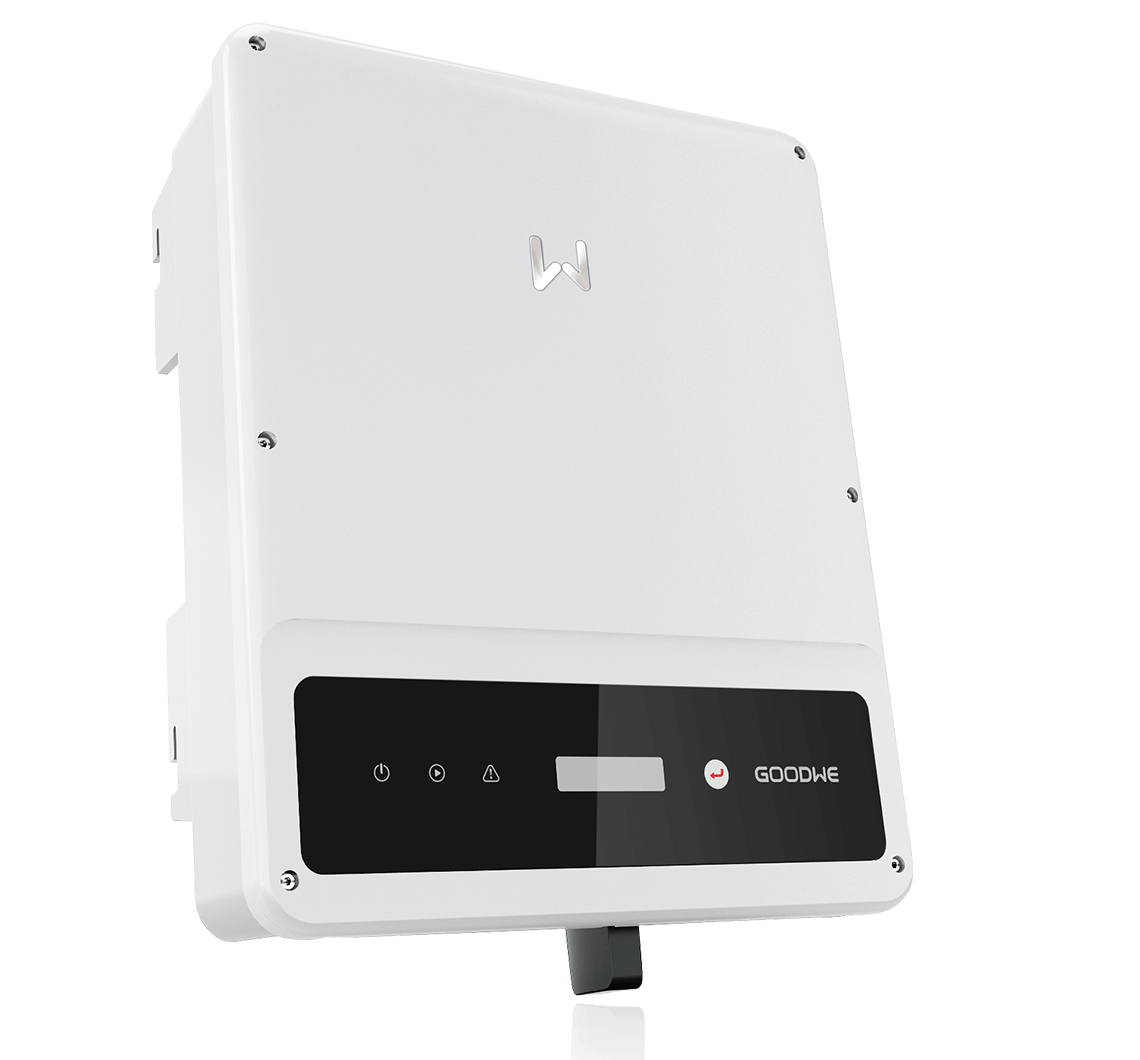

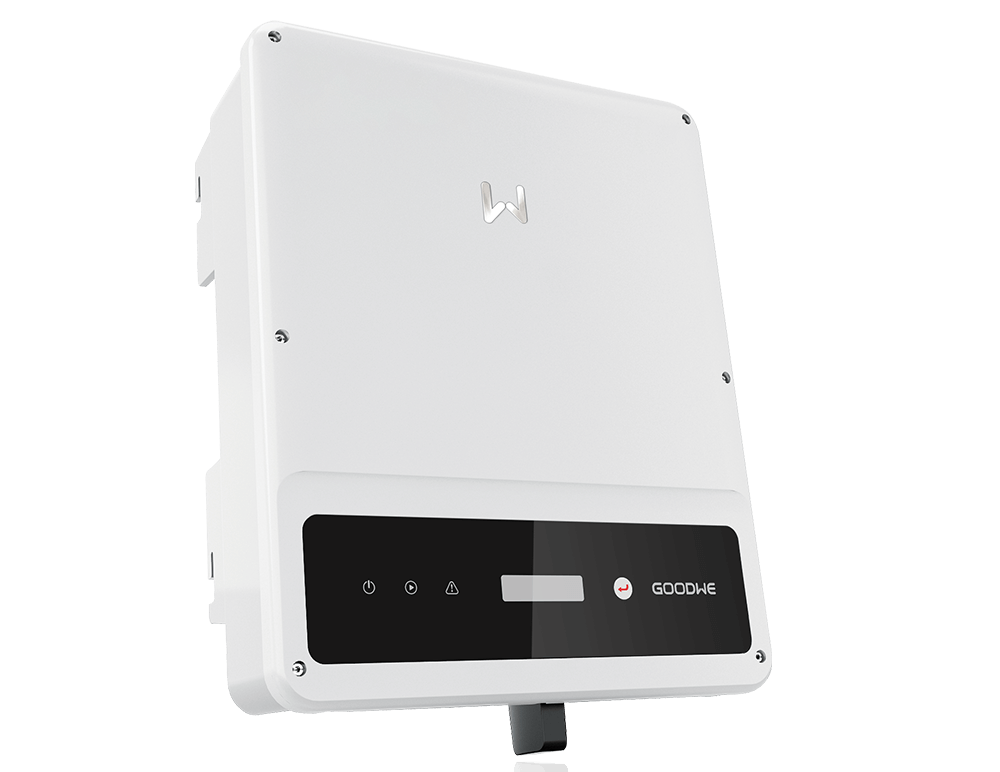

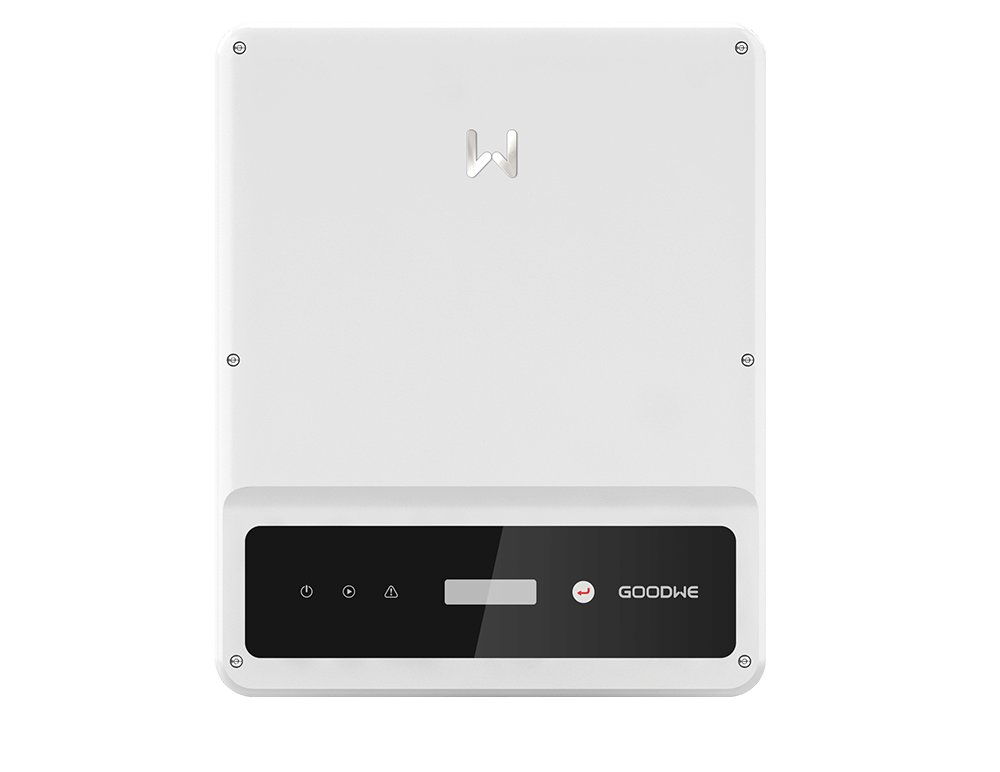

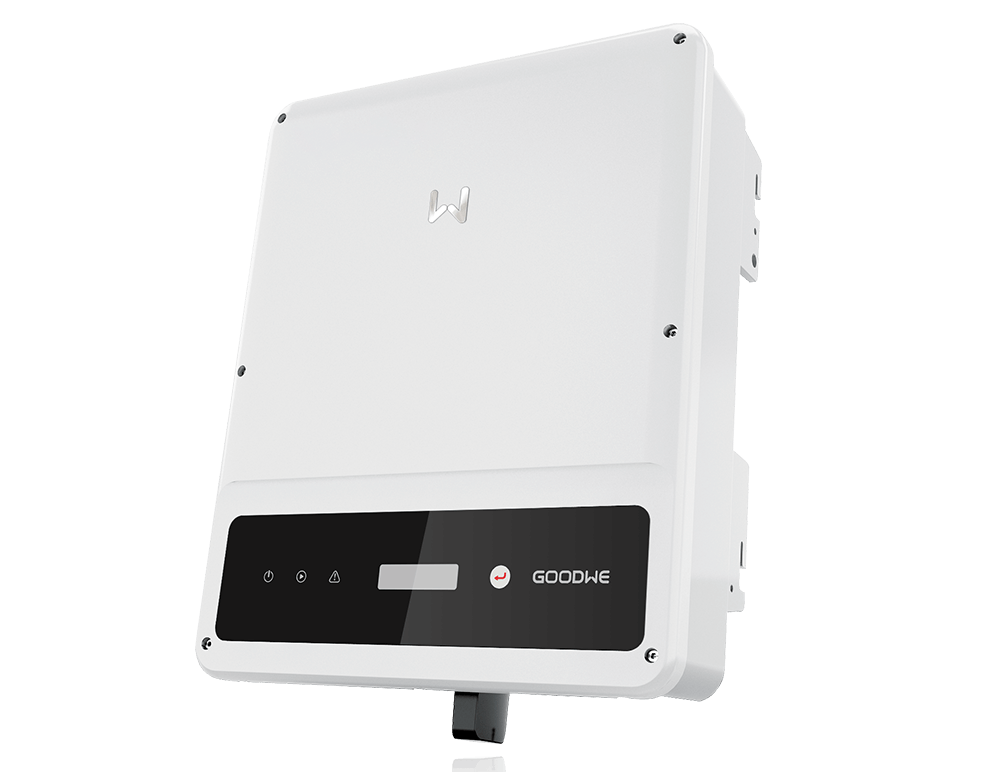

GoodWe DNS series is a perfect match for residential installations thanks to its compact size and light weight. Manufactured for durability and longevity under modern industrial standards, GoodWe DNS series is IP65 rated so it can be mounted either inside or outside your home. With a low start-up voltage of only 80 V and the widest MPPT voltage range of 80-550 V, these inverters can provide greater options for your household system. The GoodWe DNS series is also extremely light, 30% lighter than other inverters.
80V start-up voltage
Wide range of MPPT voltage
Fanless and noiseless
Small, light weight & easy to install
Export control
Flexible communication methods
Fanless
Noiseless
Export Control
Control the amount of power exported to the grid up to zero output, in compliance with your electricity utility's requirements.
Easy Installation & Maintenance
With its compact size, simplified wiring, and weight 30% lighter than similar products, this inverter is extremely easy to install and maintain to save you from troubles during usage.
Various communication options
30% Lighter than similar products
20% Volume optimization
ΕΠΙΣΚΟΠΗΣΗ
Model
GW6000T-DS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
13
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.5
Nominal Output Voltage (V)
220/230
Model
GW5000T-DS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
13
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.0
Nominal Output Voltage (V)
220/230
Model
GW4200T-DS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
13
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.0
Nominal Output Voltage (V)
220/230
Model
GW3600T-DS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
13
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.0
Nominal Output Voltage (V)
220/230
Model
GW3000T-DS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
13
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.0
Nominal Output Voltage (V)
220/230
Model
GW6000D-NS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
11
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.5
Nominal Output Voltage (V)
220/230
Model
GW5000D-NS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
11
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.0
Nominal Output Voltage (V)
220/230
Model
GW4200D-NS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
11
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.0
Nominal Output Voltage (V)
220/230
Model
GW3600D-NS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
11
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.0
Nominal Output Voltage (V)
220/230
Model
GW3000D-NS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
11
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.0
Nominal Output Voltage (V)
220/230
