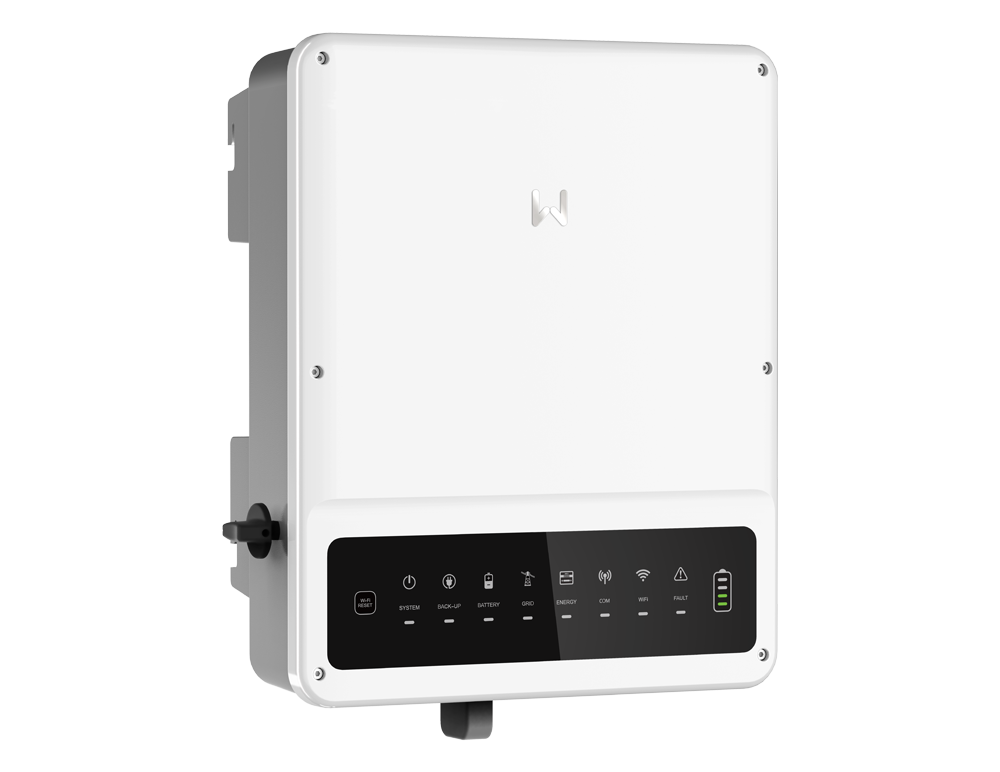

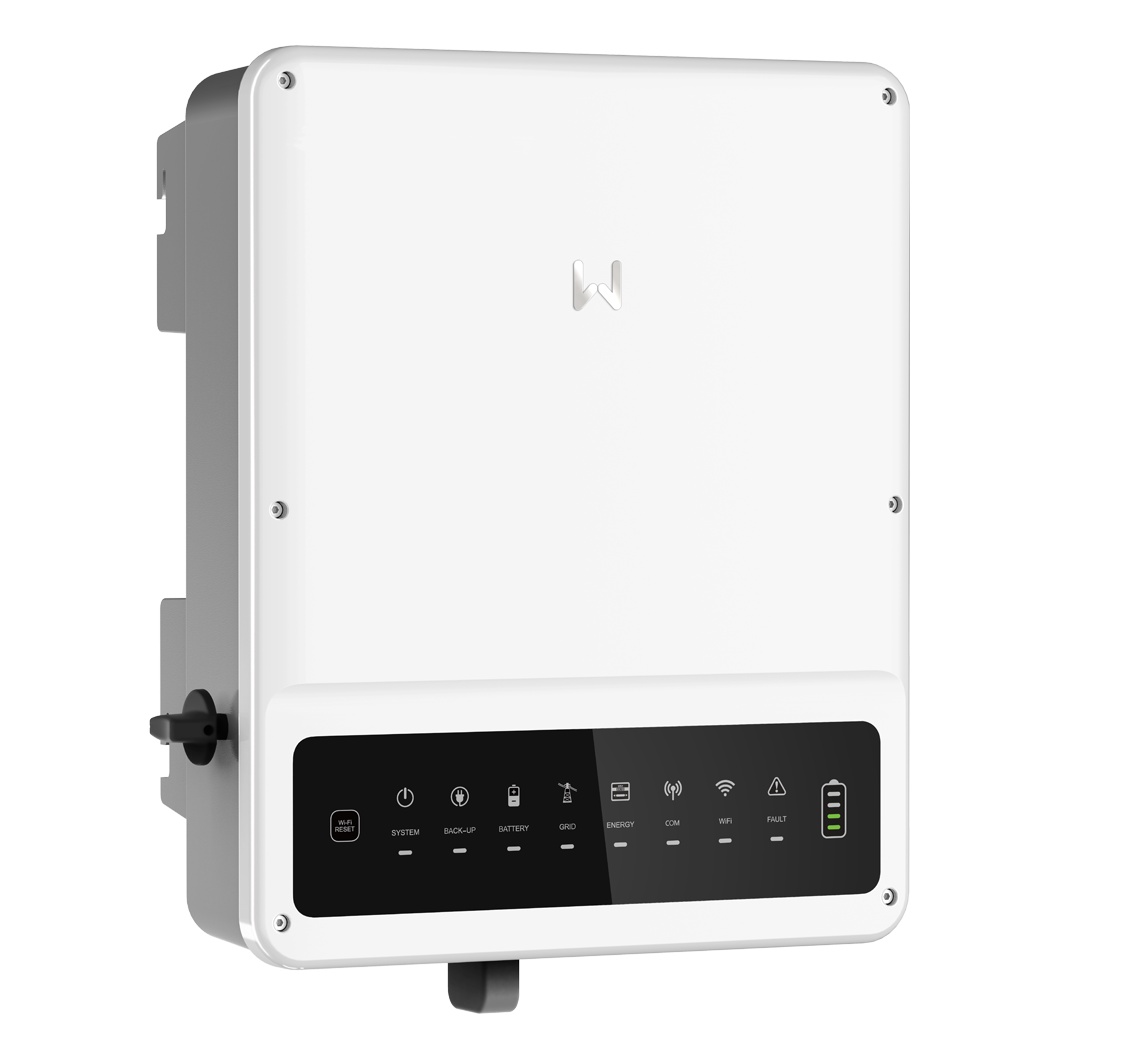

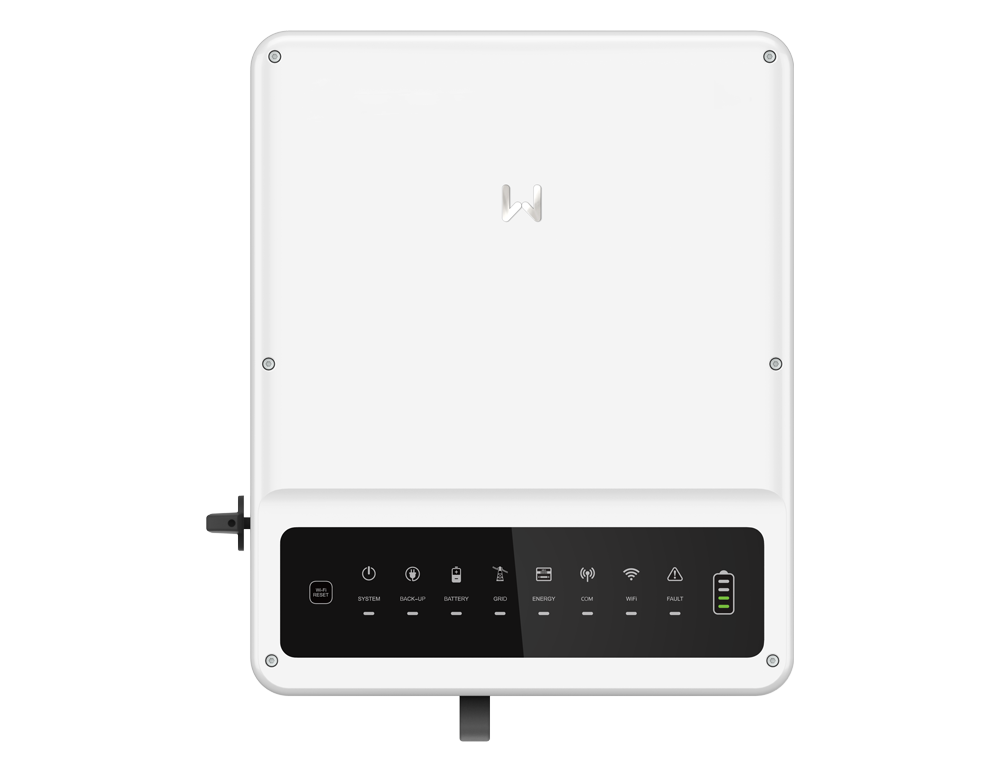

Hybrid Inverter I 3.6 – 6 kW I 2 MPPT I Single Phase I HV
DOWNLOAD PDF >>
Fanless & quiet
Elegant & compact
Enhanced energy independence for owners of residential PV systems
Efficient solutions for solar power storage are the key to increased levels of energy autonomy. The EH PLUS+ hybrid inverters are designed to maximise energy output, enhance self-consumption, realise peak-shaving and provide a reliable backup power. Featuring a modern design that does not require fans for cooling, the operation is silent and reliable. An on-grid, battery-ready version of the inverter is available. The EH PLUS+ series is compatible with a range of batteries, including the GoodWe Lynx Home F PLUS+.
UPS level switching < 10ms
Smart home integration with multi-protocol communications
IP65 ingress protection
High quality components
Fanless & quiet
Elegant & compact
Integrated dynamic power export limit and load monitoring. Supports multiple communication protocols for smart home integration.
Smart home integration
Integrated load monitoring
Thanks to the in-built DC type II SPD, EH PLUS+ series can protect DC side from lightning strikes and save the cost of an external device.
IP65 ingress protection
Built-in Type II SPD on DC side
High backup output power and battery charging power capabilities. Compatible with GoodWe Batteries and a wide range of HV battery brands.
6
High battery charging power 6 kW
10
UPS level switching < 10ms
Model
GW3600N-EH
Battery Voltage Range (V)
85~460
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
3600
Back-up Nominal Apparent Power (VA)
3600
Model
GW5000N-EH
Battery Voltage Range (V)
85~460
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
5000
Back-up Nominal Apparent Power (VA)
5000
Model
GW6000N-EH
Battery Voltage Range (V)
85~460
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
6000
Back-up Nominal Apparent Power (VA)
6000
