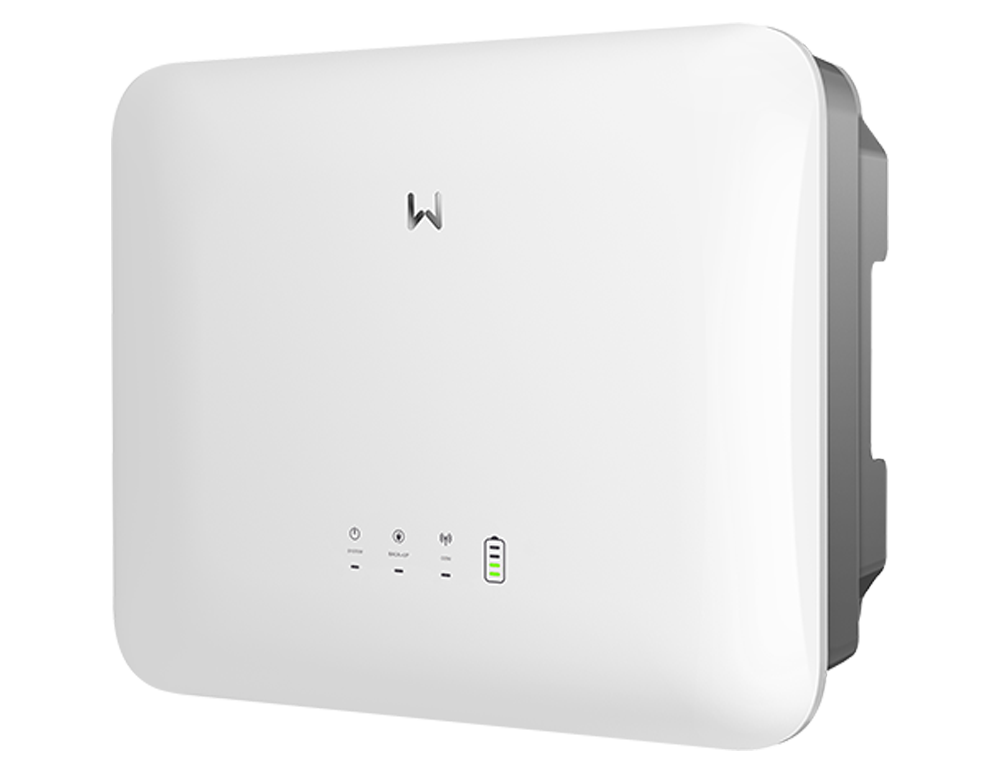

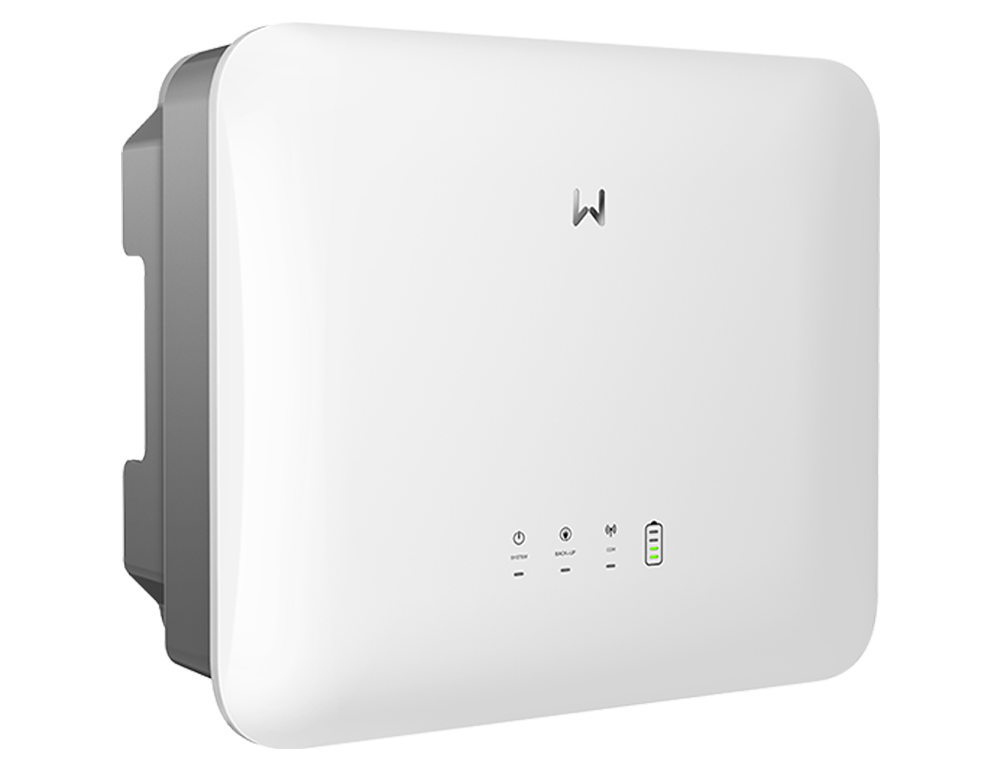

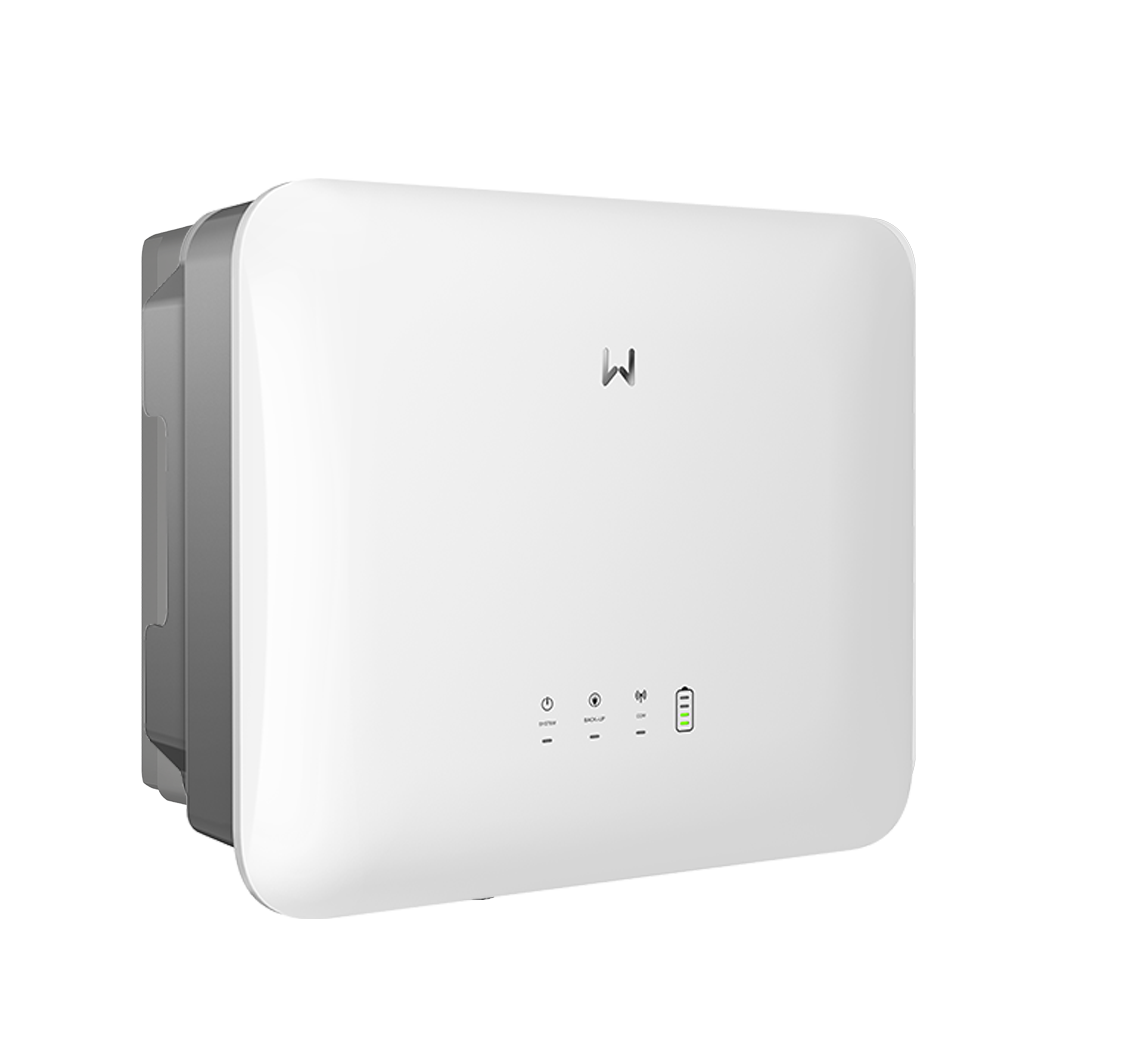

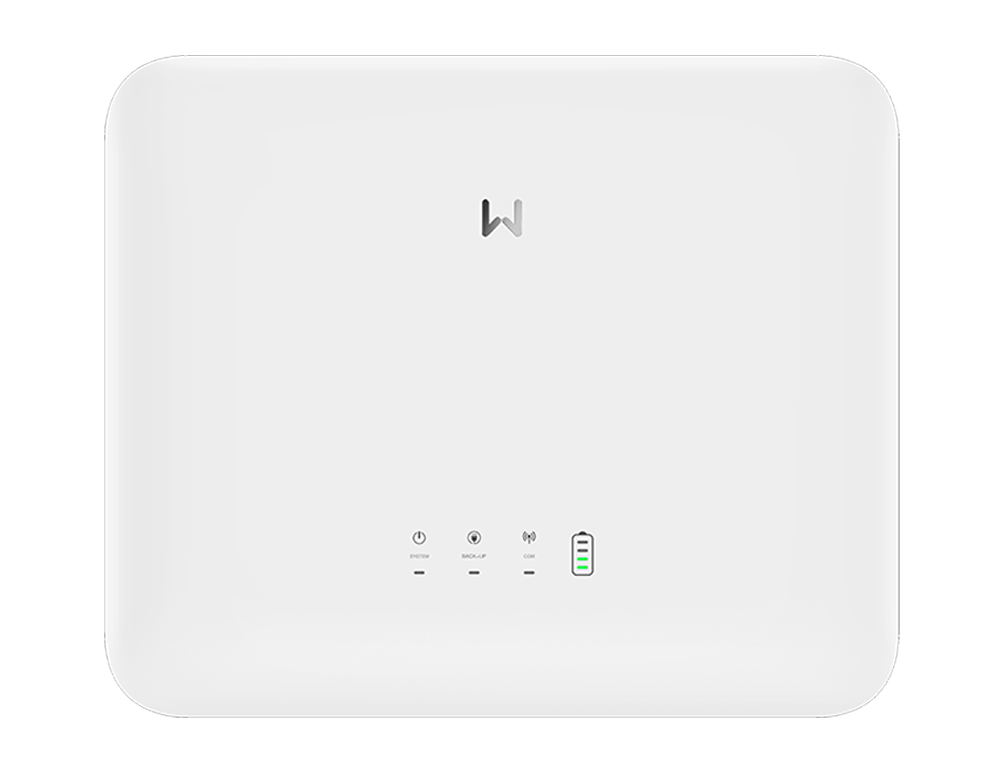

ES G2 Series
Hybrid Inverter I 3.6 - 6 kW I 2 MPPTs I Single Phase I LV
DOWNLOAD PDF >>
.png)
Fanless & quiet
Elegant & compact
Compact and efficient inverter for optimised solar energy back-up
Meeting the needs of combined PV rooftop and energy storage systems, the ES G2 hybrid inverter provides optimized energy flexibility. By facilitating maximum back-up of generated solar energy, a high degree of autonomy can be achieved. Factor in its modern design and smart home integration abilities, then ES G2 is the ideal choice for residential applications. The ES G2 series is compatible with a range of batteries, including the GoodWe Lynx Home U.
Smart home integration
Parallel connection
Load & generator management
Strong backup with USP level switching < 10ms
Fanless & quiet
Elegant & compact
Smart and efficient operations
Integrated dynamic power export limit, load monitoring, and load & generator management. Supports multiple communication protocols for smart home integration.
Load & generator management
Smart home integration
Highest safety standards
In-built DC type II SPD can protect DC side from lightning strikes and save the cost of an external device. AFCI (optional) offers superior DC protection in scenarios with high security requirements.
SPD type II on DC side
Optional AFCI on DC side
Optimised energy autonomy
High backup output power with parallel operation capability also for backup output. Compatible with GoodWe Batteries and a wide range of LV battery brands.
3 in 1
Up to 3 inverters in parallel in one phase
10 ms
UPS level switching < 10ms
ΕΠΙΣΚΟΠΗΣΗ
Model
GW6000M-ES-20
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current(A)
60/60
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
6000
Back-up Nominal Apparent Power (VA)
6000
Model
GW6000-ES-20
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current(A)
120/120
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
6000
Back-up Nominal Apparent Power (VA)
6000
Model
GW5000M-ES-20
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current(A)
60/60
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
5000
Back-up Nominal Apparent Power (VA)
5000
Model
GW5000-ES-20
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current(A)
120/120
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
5000
Back-up Nominal Apparent Power (VA)
5000
Model
GW3600M-ES-20
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current(A)
75/75
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
3680
Back-up Nominal Apparent Power (VA)
3680
Model
GW3600-ES-20
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current(A)
75/75
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
3680
Back-up Nominal Apparent Power (VA)
3680
