ES Series
3.6-5 kW | Single phase | 2 MPPTs | Hybrid inverter (LV)
DOWNLOAD PDF >>
UPS-level Switching
100A
undefined
undefined

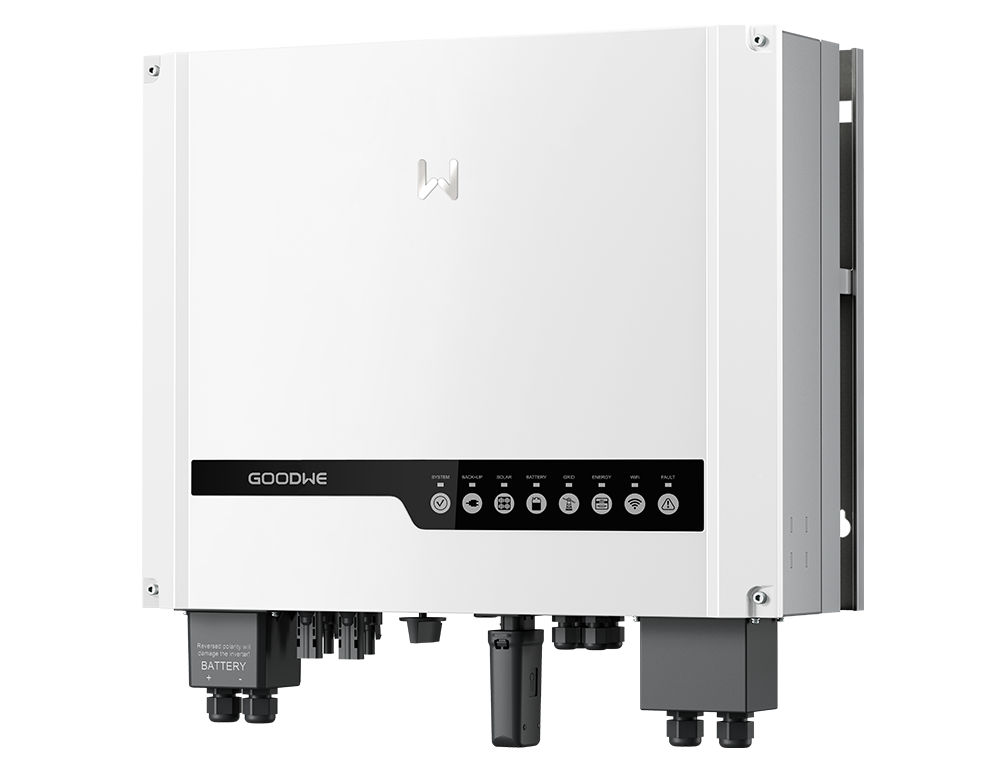

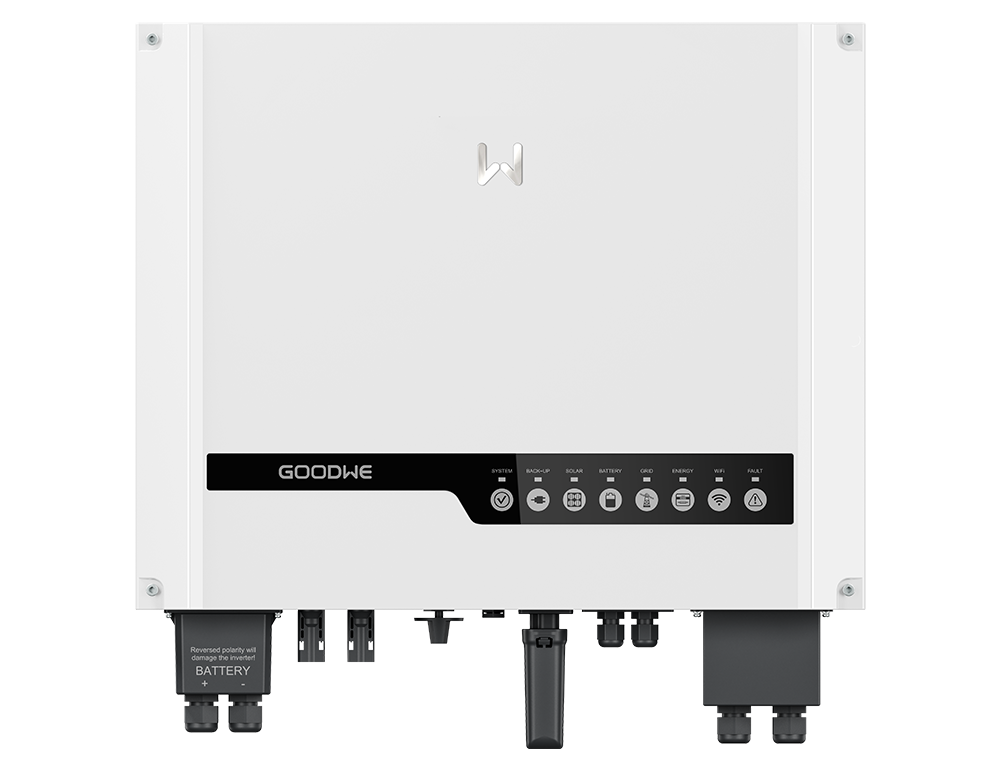

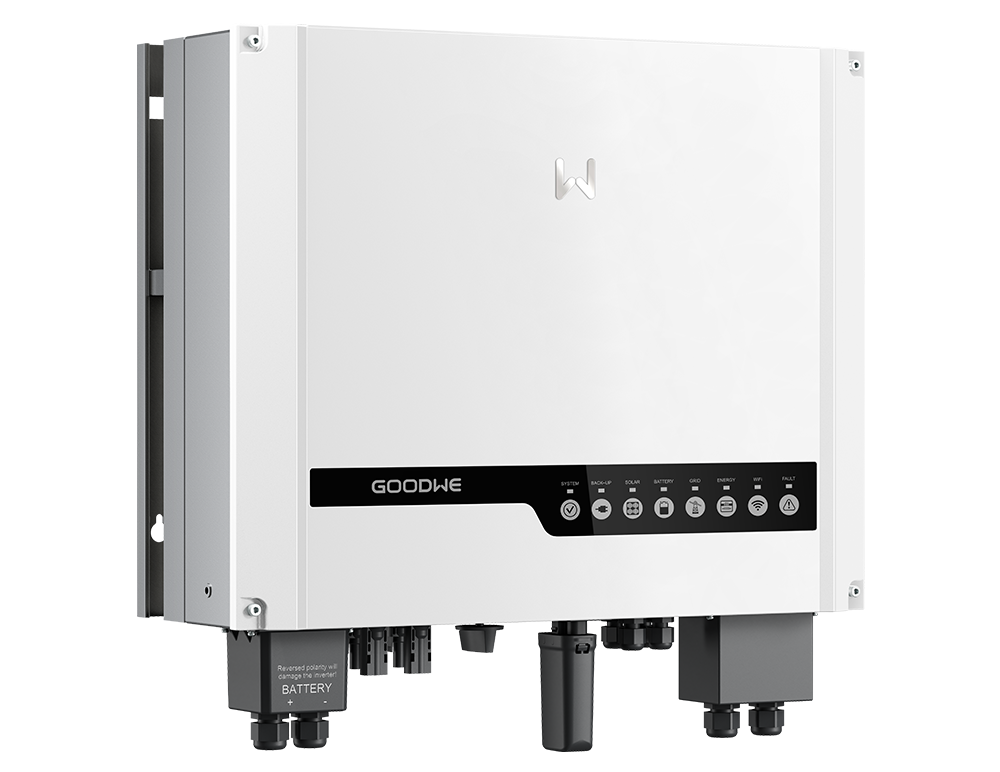

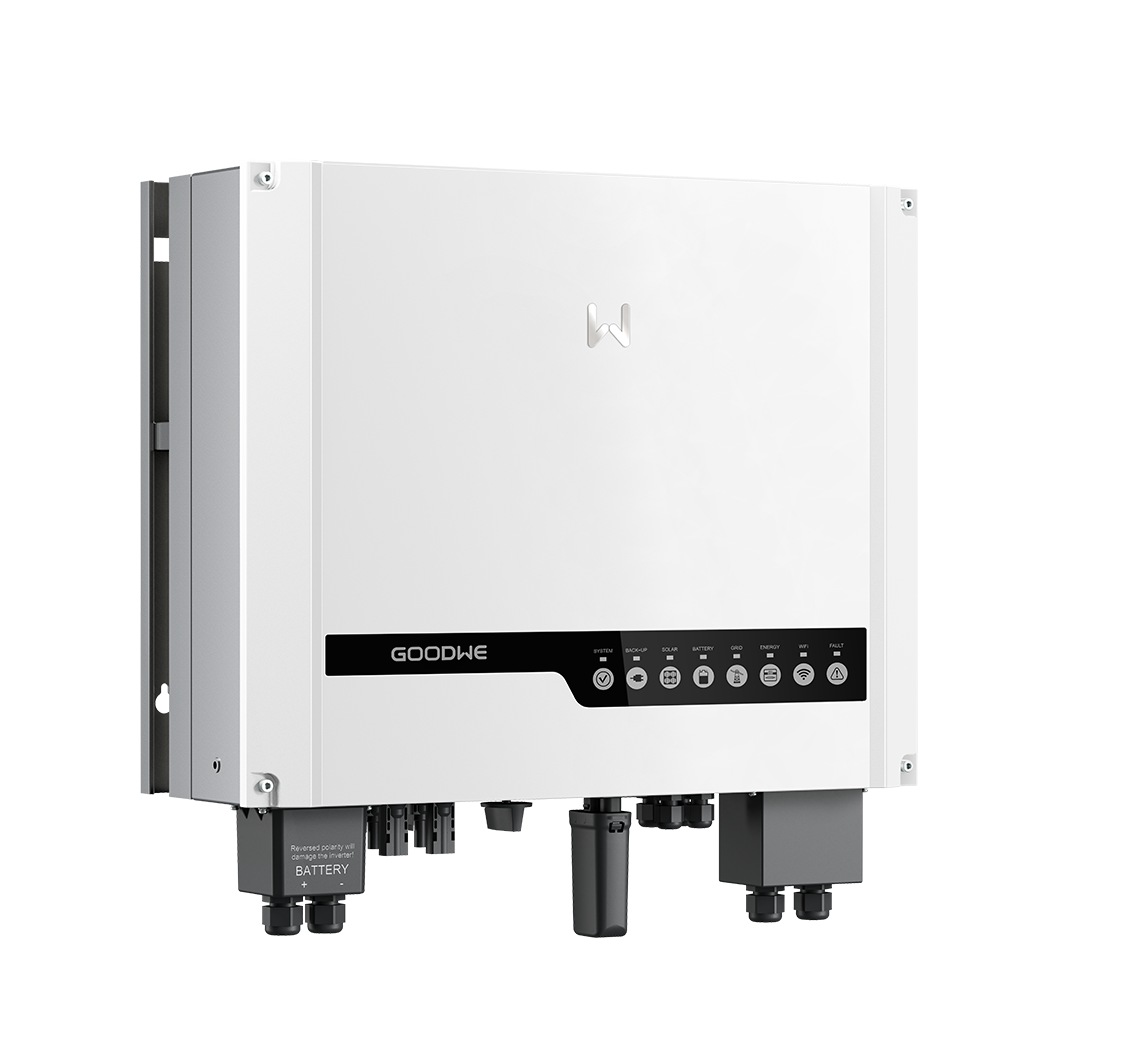

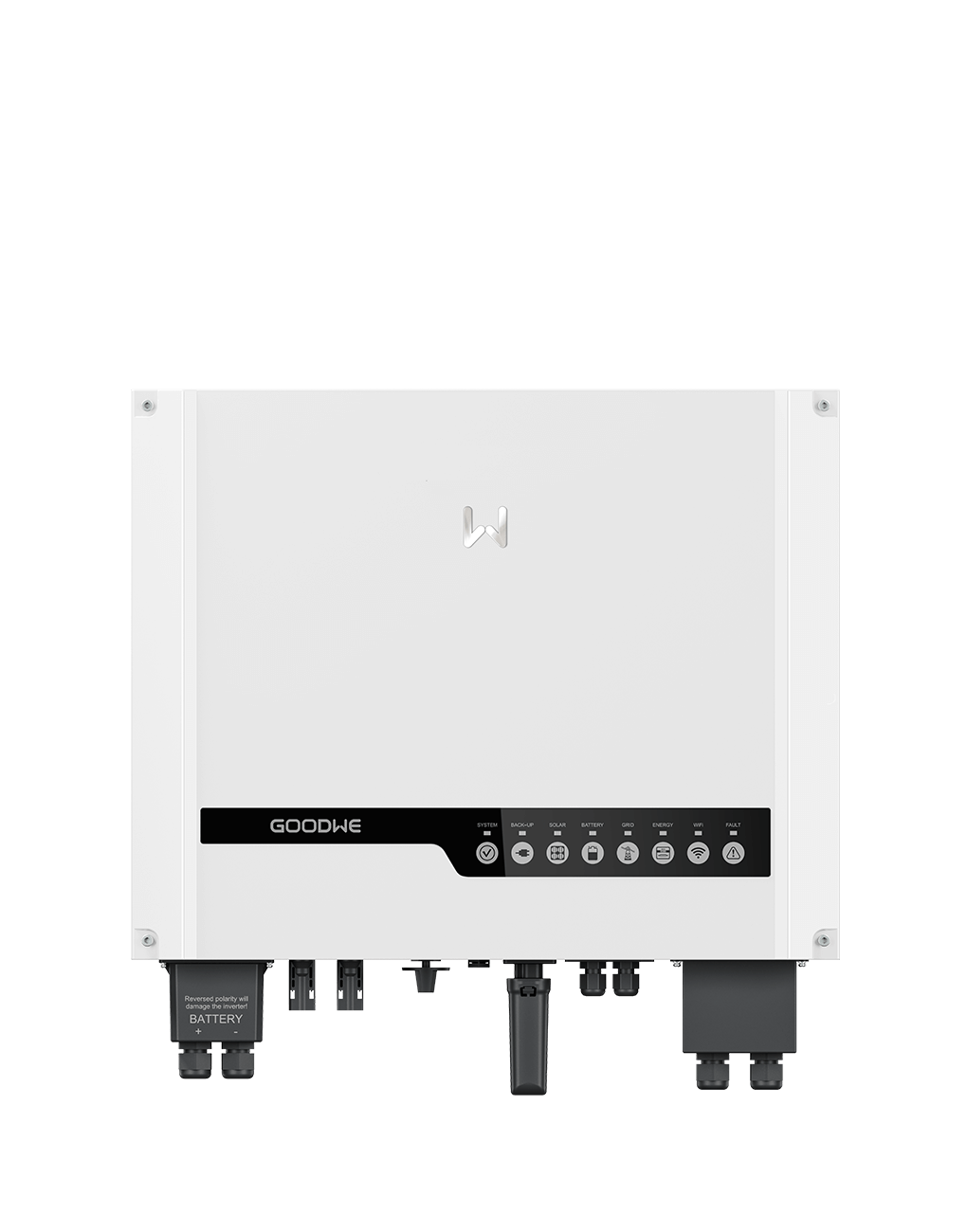

The GoodWe ES series bi-directional energy storage inverter can be used for both on-grid and off-grid PV systems, with the ability to control the flow of energy intelligently. During the day, the PV array generates electricity which can be provided either to the loads, fed into the grid or charge the battery, depending on the economics and set-up. The electricity stored can be released when the loads require it during the night, including inductive loads such as air conditioners or refrigerators. Additionally, the power grid can also charge storage devices via the inverter. An all-round intelligent system for maximum energy flexibility.
Charge controller and inverter integrated
Up to 100A max. charging/discharging current
Export control (zero export)
IP65 dustproof and waterproof
<10 ms UPS-level switching
Fanless design, long lifespan
UPS-level Switching
100A
undefined
undefined
4.6 kW Charging/discharging Capacity
With up to 100A maximum charging/discharging current, GoodWe ES series can charge batteries with 4.6 kW power at once.
IP65 Protection Level
GoodWe ES Series is equipped with IP65 protection level, which allows both indoor and outdoor installation.
ΕΠΙΣΚΟΠΗΣΗ
Model
GW3648D-ES
Battery Voltage Range (V)
48
Max. Continuous Charging / Discharging Current(A)
75/75
Max. Input Current per MPPT (A)
14
Max. Apparent Power Output to Utility Grid (VA)
2
Back-up Nominal Apparent Power (VA)
1
Model
GW5048D-ES
Battery Voltage Range (V)
48
Max. Continuous Charging / Discharging Current(A)
100/100
Max. Input Current per MPPT (A)
14
Max. Apparent Power Output to Utility Grid (VA)
2
Back-up Nominal Apparent Power (VA)
1
