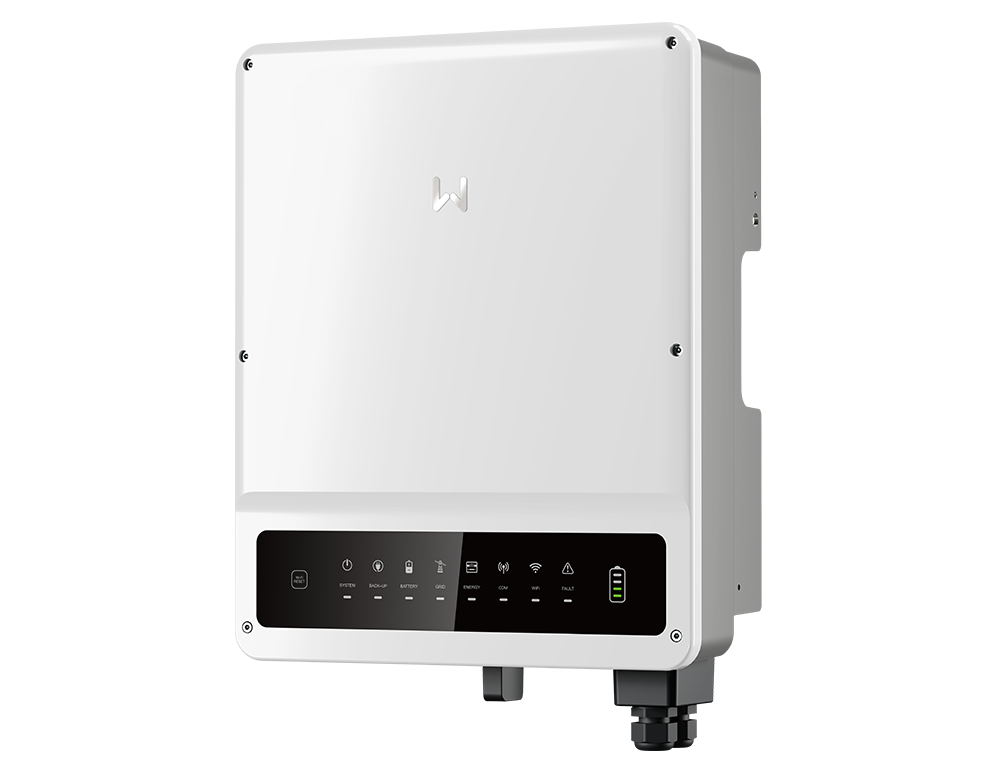

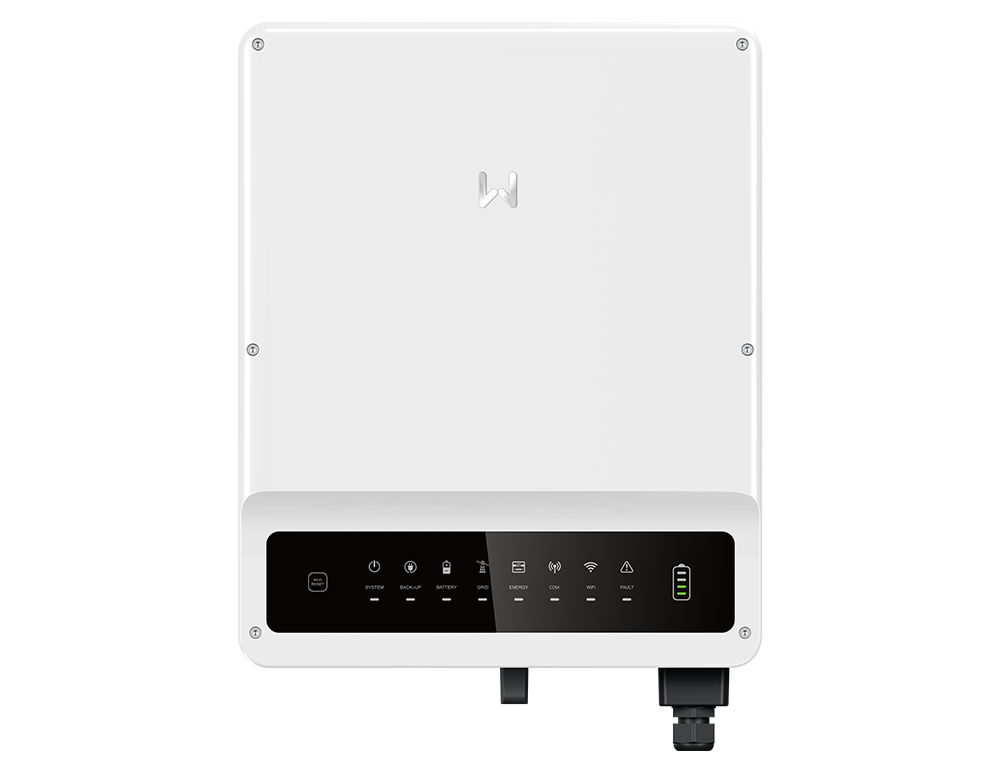

Hybrid Inverter I 5 – 10 kW I 2 MPPTs I Three Phase I HV
DOWNLOAD PDF >>
Fanless & Quiet
Elegant & Compact
Smart optimisation of energy autonomy across residential ecosystems
Operating at the heart of the integrated PV power and storage system, our ET PLUS+ hybrid inverters are designed to maximise energy output, enhance self-consumption and facilitate backup power. With intelligent load controls and wide battery voltage range, the set-up can be flexibly configurated to meet individual needs across the residential ecosystem. Combine with GoodWe battery system Lynx Home F for a safe and reliable energy storage solution.
Surge protection on both DC and AC side
Backup with UPS level switching < 10ms
IP66 ingress protection
Integrated dry contact for external loads
Fanless & Quiet
Elegant & Compact
Thanks to the in-built DC type II SPD, ET PLUS+ series can protect DC side from lightning strikes and save the cost of an external device.
In-built Type II SPD on DC side
IP66 ingress protection
Wide battery voltage range (180-600V) supports various battery capacities and power. Compatible with GoodWe batteries and multiple other brands. The UPS-level switching ability ensure the power supply security and reduce the risk of outage for critical loads.
Wide battery voltage range
Integrated dynamic power export limit and load monitoring
100% unbalanced output to compensate load differences in self-consumption and backup modes. Supports multiple communication protocols for smart home integration.
100%
100% unbalanced output
Model
GW5K-ET
Battery Voltage Range (V)
180~600
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
12.5/12.5
Max. Apparent Power Output to Utility Grid (VA)
5500
Back-up Nominal Apparent Power (VA)
5000
Model
GW6.5K-ET
Battery Voltage Range (V)
180~600
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
12.5/12.5
Max. Apparent Power Output to Utility Grid (VA)
7150
Back-up Nominal Apparent Power (VA)
6500
Model
GW8K-ET
Battery Voltage Range (V)
180~600
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
12.5/12.5
Max. Apparent Power Output to Utility Grid (VA)
8800
Back-up Nominal Apparent Power (VA)
8000
Model
GW10K-ET
Battery Voltage Range (V)
180~600
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
12.5/12.5
Max. Apparent Power Output to Utility Grid (VA)
11000
Back-up Nominal Apparent Power (VA)
10000
