HCA Series
AC Wallbox I 22 kW I 11 kW I 7 kW I Single / Three Phase
DOWNLOAD PDF >>
Smart charging
Safe and efficient
Solar-powered EV charging for green and cost-efficient transportation
With rising energy prices on one side and falling feed-in-tariffs on the other, owners of residential solar rooftops are well-advised to maximise self-consumption of the generated PV power. By extending the PV and energy storage system to include charging of electric vehicles (EVs), a high degree of energy independence can be secured. Connecting the EV charger with any GoodWe inverter via the SEMS communication platform enables Solar Charging. All GoodWe storage inverters with batteries provide additional Hybrid Charging options.
Compatible with all EV brands
Charging cable included
Complete PV+EV solution available
Smart and flexible charging
Smart charging
Safe and efficient
Smart and efficient operations
The EV Charger provides various communication options and integrates seamlessly with GoodWe's free monitoring platform SEMS, allowing EV-owners to intelligently monitor and schedule their charging processes.
Intelligent monitoring & scheduling
Manage PV and charging systems via SEMS

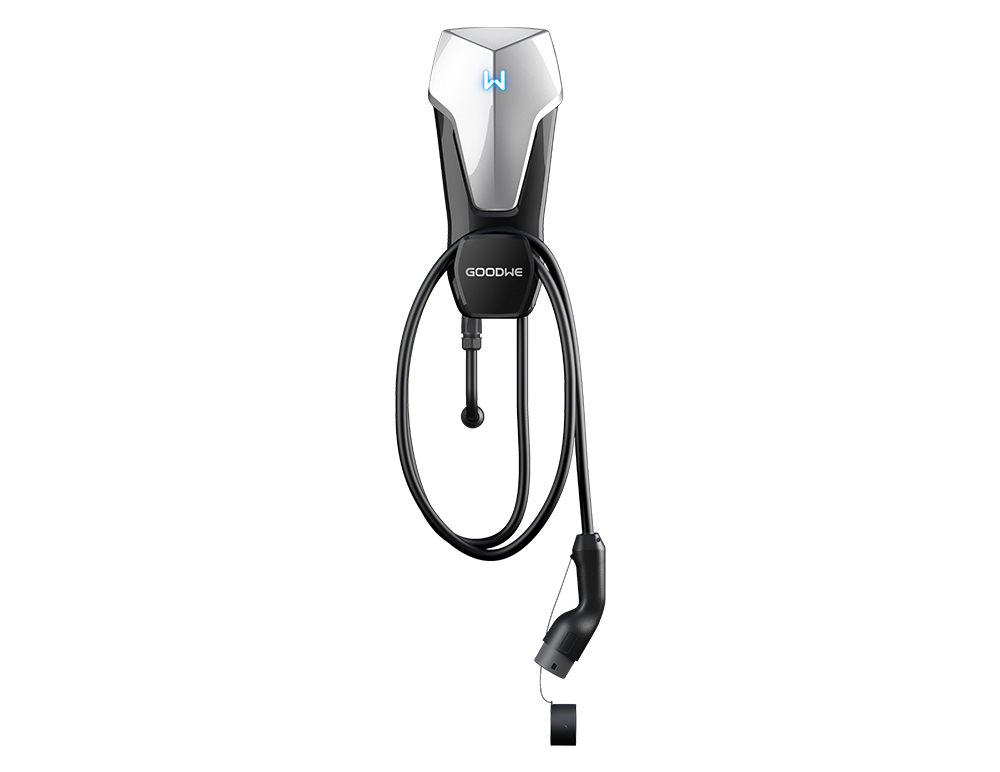

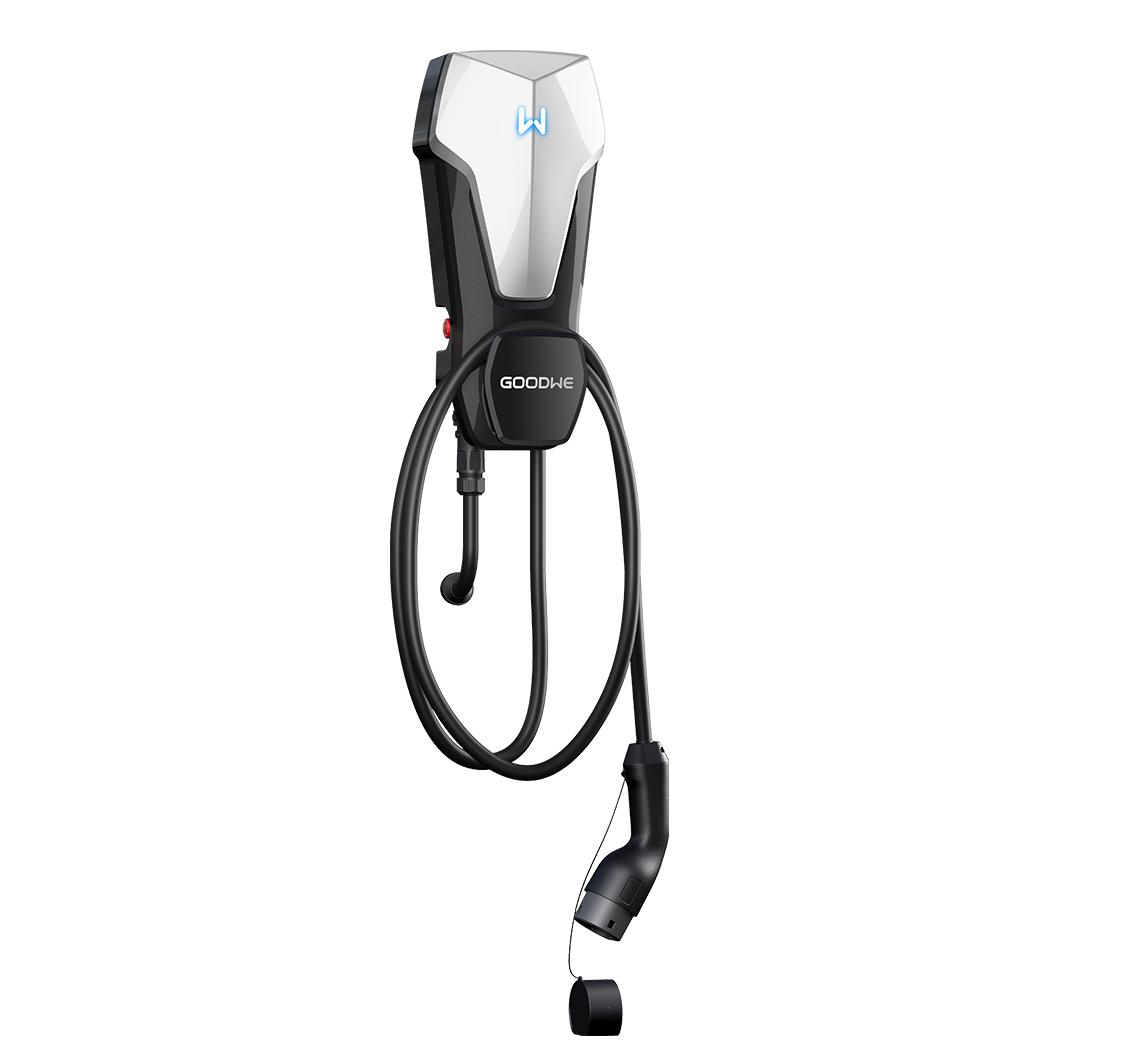

Modern and compact design
With wall-mounted and pole-mounted design as well as IP65 protection against all weather conditions, the GoodWe EV Charger is a great option whether you want to install it indoors or outdoors. Small, lightweight, and compact, the EV Charger can be installed and maintained in a hassle-free manner.
Easy to install and maintain
Wall-mounted or pole-mounted design
IP65 design for indoor/outdoor use
Maximized self-consumption
Combine with GoodWe inverters and batteries for an end-to-end solution that meets the individual needs of PV+EV owners and facilititates a high degree of energy autonomy. For EV-owners considering the installation of a PV system at a later stage, the GoodWe EV charger represents a future-proof and flexible option. A one-stop-shop solution, GoodWe inverters, batteries and EV charger are fully compatible and ensure safe and efficient operation.
Complete PV+EV solution available
Flexible and future-proof options
Fully compatible for efficient and safe operations
ΕΠΙΣΚΟΠΗΣΗ
Model
GW22K-HCA
Nominal Input Voltage (V)
400, 3L / N / PE
Nominal AC Grid Frequency (Hz)
50 / 60
Nominal Output Power (W)
22000
Nominal Output Current (A)
32
Dimension (W × H × D mm)
208 × 450 × 150
Model
GW11K-HCA
Nominal Input Voltage (V)
400, 3L / N / PE
Nominal AC Grid Frequency (Hz)
50 / 60
Nominal Output Power (W)
11000
Nominal Output Current (A)
16
Dimension (W × H × D mm)
208 × 450 × 150
Model
GW7K-HCA
Nominal Input Voltage (V)
230, L / N / PE
Nominal AC Grid Frequency (Hz)
50 / 60
Nominal Output Power (W)
7000
Nominal Output Current (A)
32
Dimension (W × H × D mm)
208 × 450 × 150
