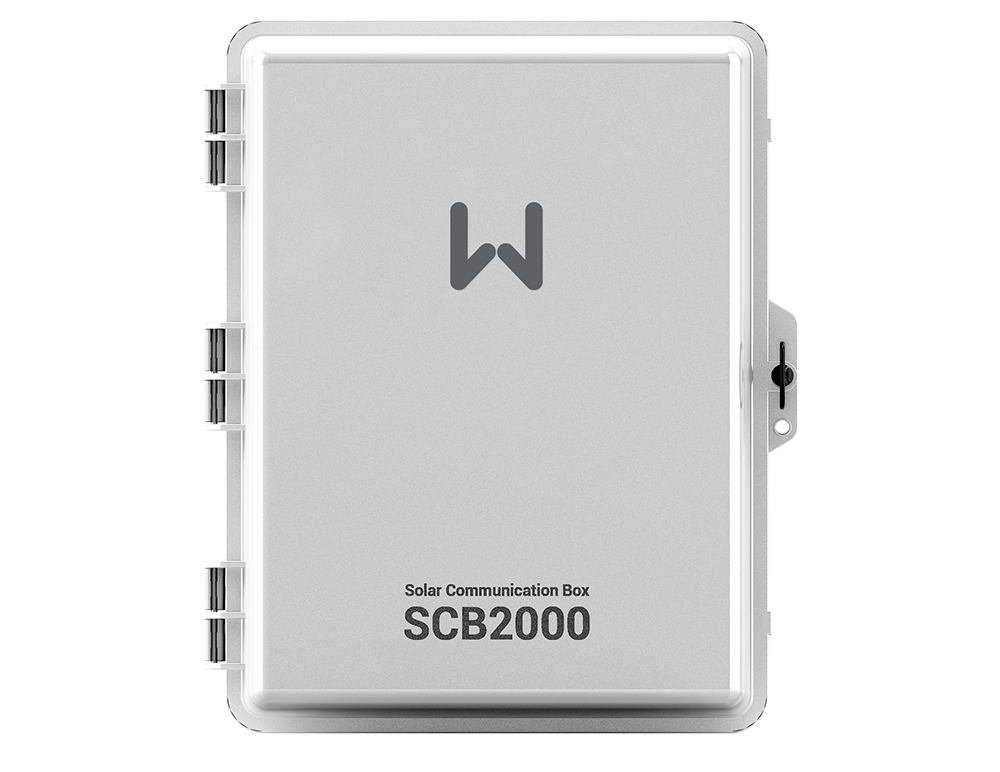

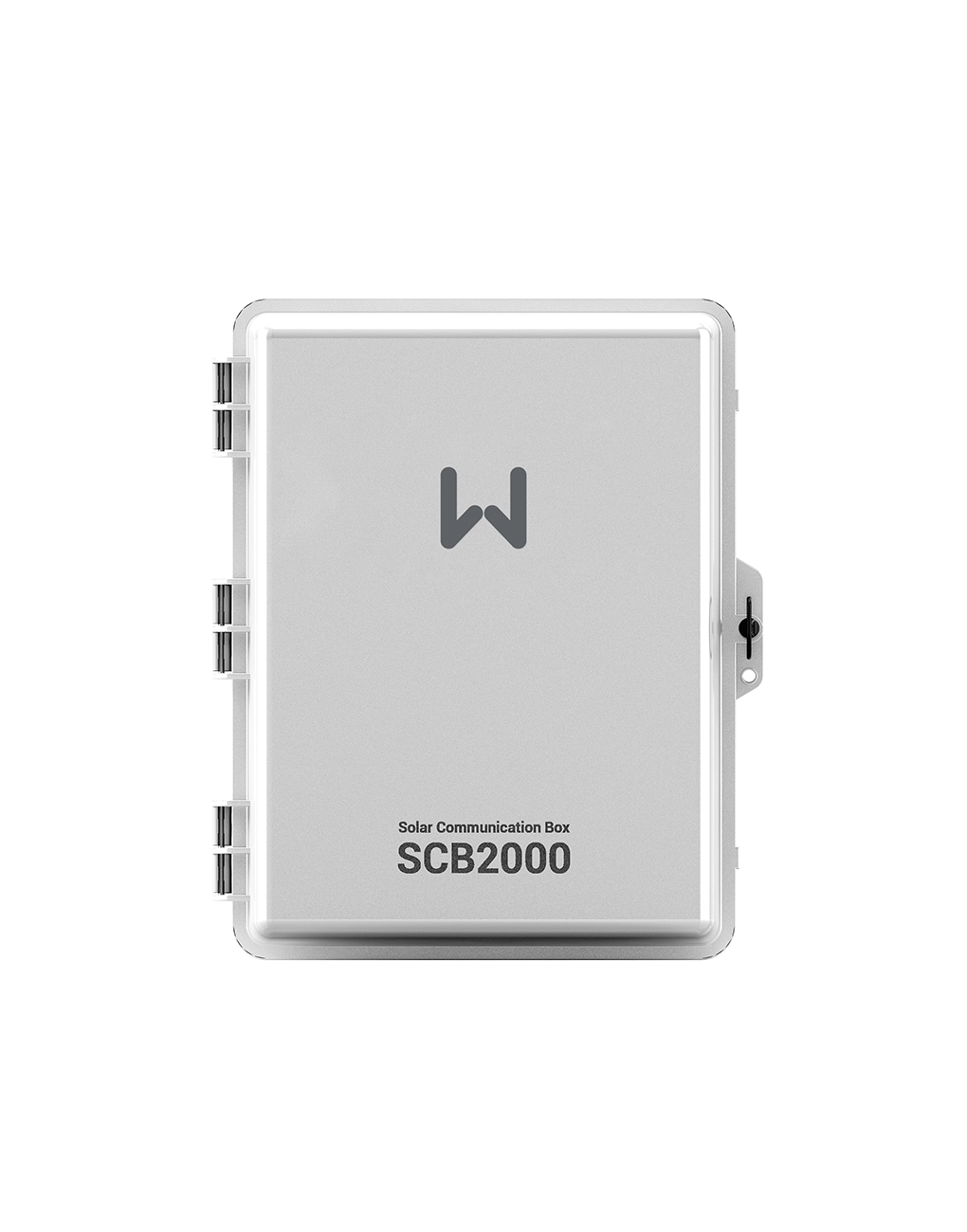

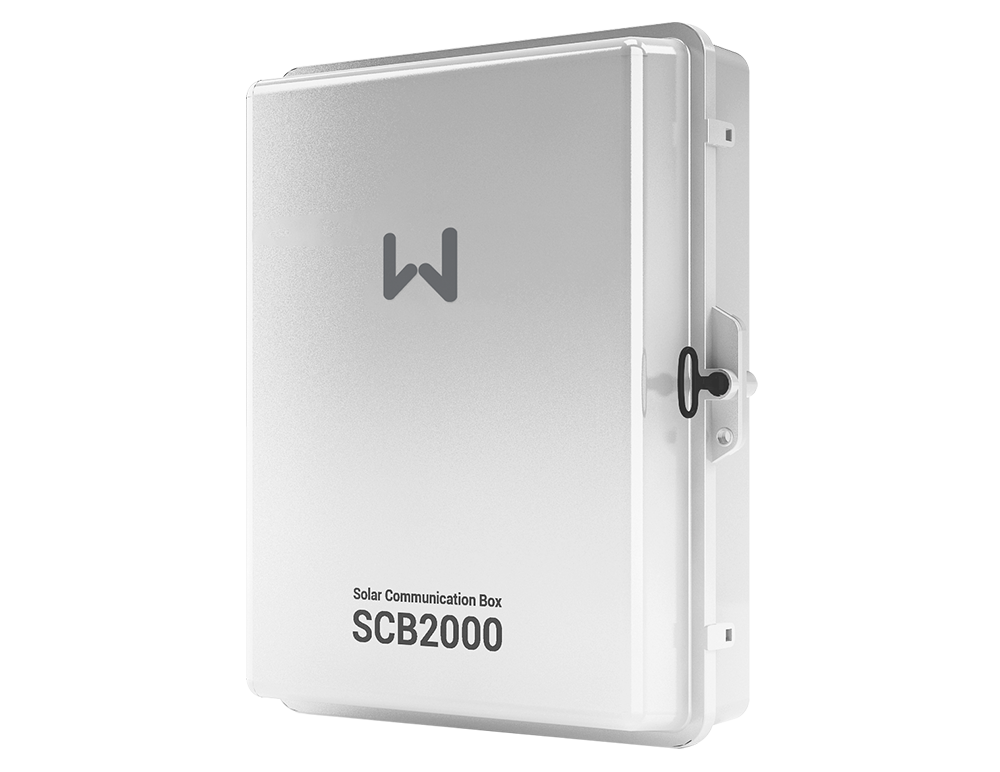

Solar Communication Box 2000
SCB2000 With Optical / SCB2000 Without Optical
DOWNLOAD PDF >>
PLC
IP65
The SCB2000 (Solar Communication Box) integrates the following component sections: a PLC communication board, a data collecting Ezlogger Pro board, a GPRS module (optional), a fiber ring network switch (optional) and a three-phase/single-phase switch.
Cloud data transmission
Power line communication
Integrated GPRS module optional
Inbuilt single / three phase
PLC
IP65
ΕΠΙΣΚΟΠΗΣΗ
Model
SCB2000 With Optical
Rated Power Consumption
≤18W
Communication Mode with Inverter
PLC
Voltage Range of Input AC Line
342~690V
Max Quantity of Inverter Connected
30
Communication Mode with Server/Cloud
LAN/SC (can form optical fiber ring network)/GPRS
Model
SCB2000 Without Optical
Rated Power Consumption
≤16W
Communication Mode with Inverter
PLC
Voltage Range of Input AC Line
342~690V
Max Quantity of Inverter Connected
30
Communication Mode with Server/Cloud
LAN/GPRS
