AFCI 2.0
98.3% efficiency

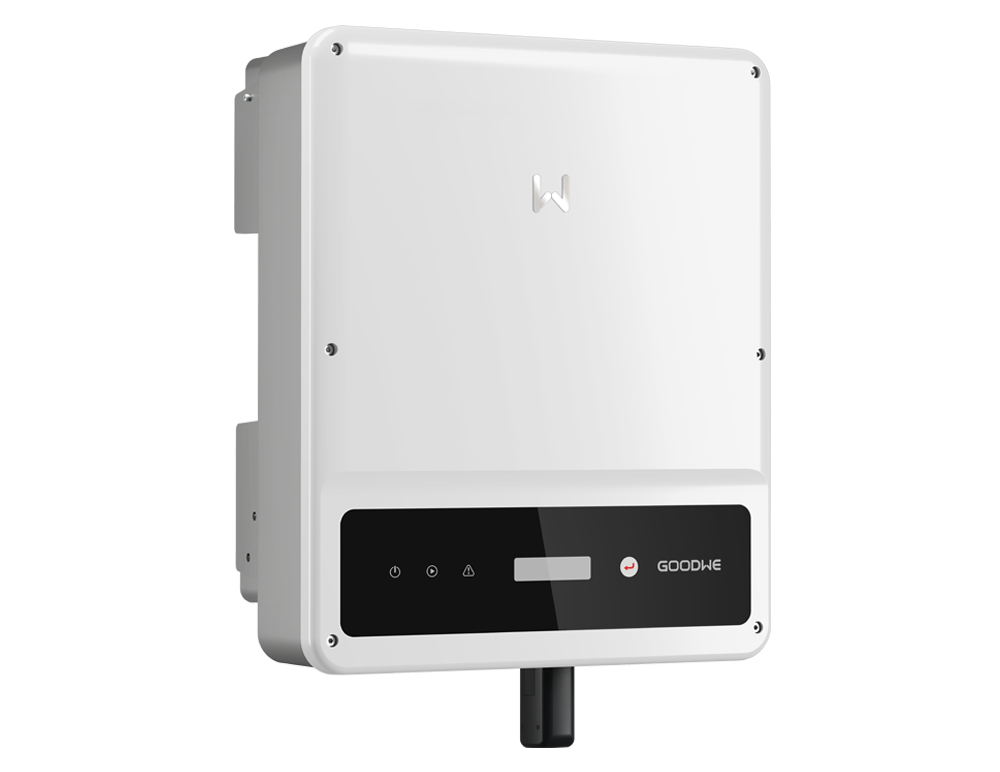

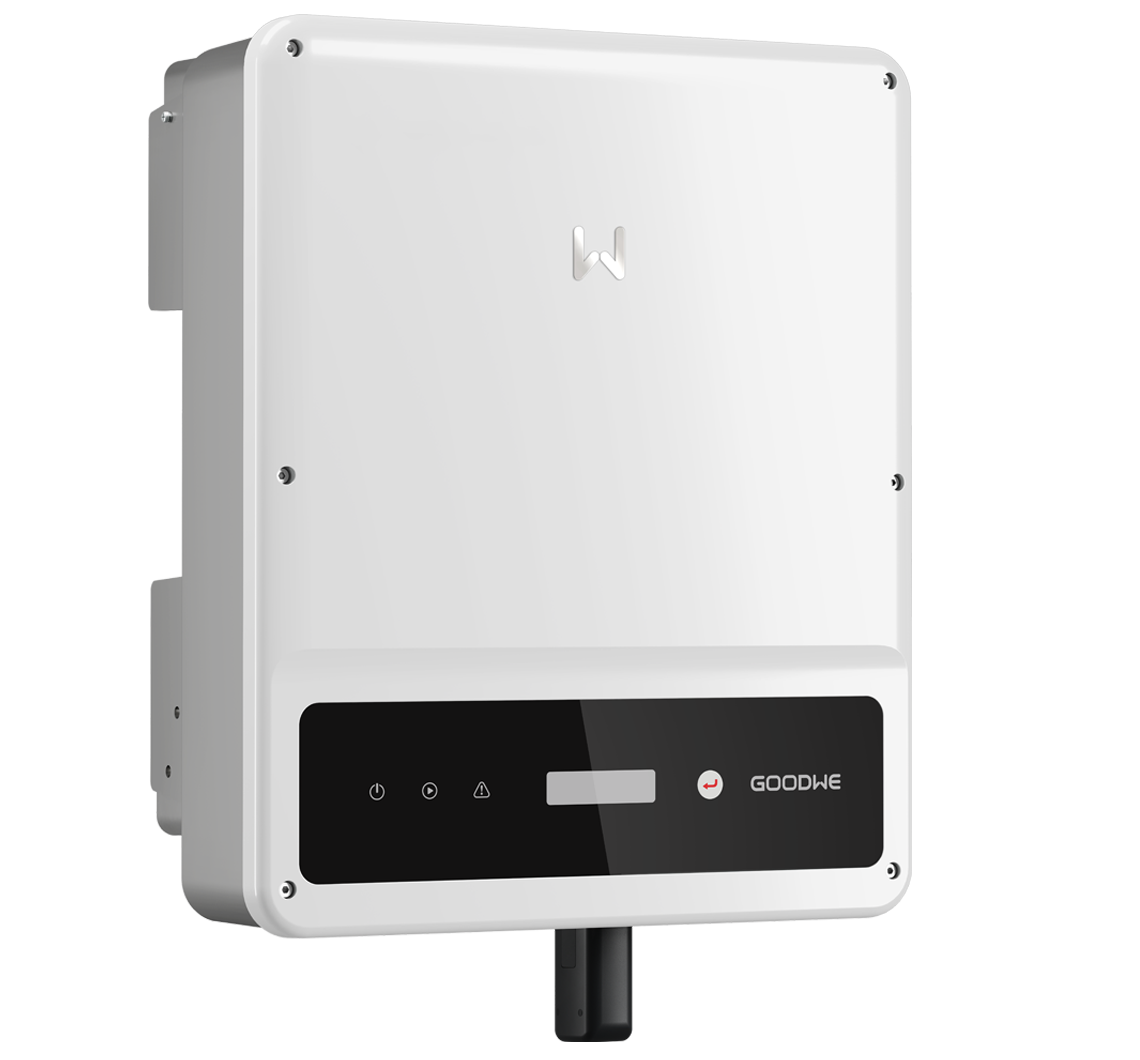

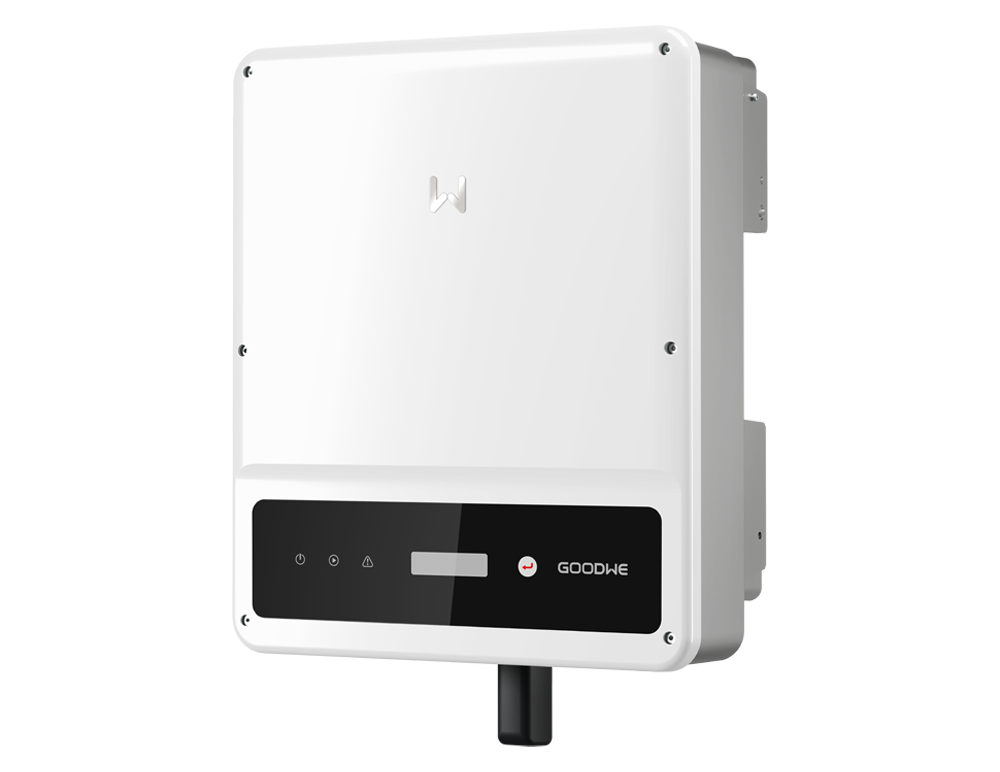

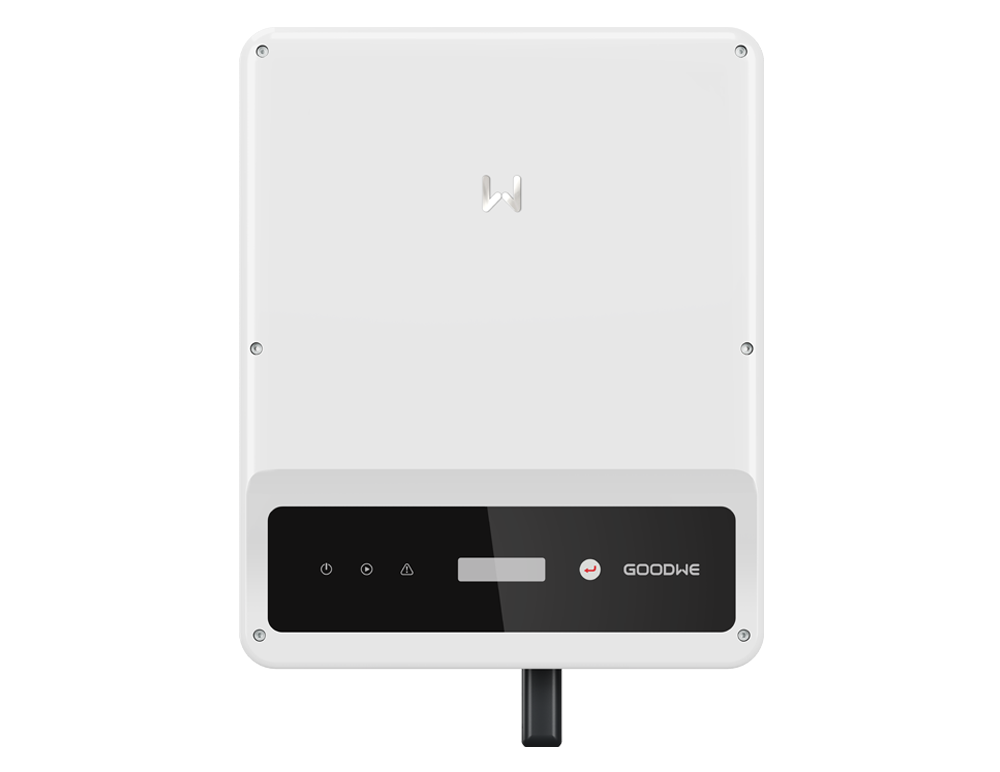

The GoodWe SDT G2 Series is one of the best options available on the residential & commercial segments thanks to its technical strengths that make it one of the most efficient products in the market. For enhanced safety, this inverter is able to incorporate AFCI. Its high efficiency (98.3%) and its enhanced oversizing & overloading capabilities represent an outstanding improvement in the industry. Moreover, its plug-in AC connector make operation & maintenance easier.
Up to 98.3% max. efficiency
150% DC input oversizing & 110% AC output overloading
Arc-fault circuit interrupter optional
Easy installation and O&M
AFCI 2.0
98.3% efficiency
Arc-Fault Circuit Interrupter Optional
Safety First. With AFCI, the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously. GoodWe does not only deliver efficiency, reliability, but security as well.
High Power Generation, Optimal Consumption
2nd generation of GoodWe SDT series is downsized by more than 150%. However, being compatible with bifacial modules, the competency of this half size successor is considerably improved. With 150% DC input oversizing, 110% AC output overloading capability, it drives your inverter to its full capacity by adding extra reflections from the backside of bifacial panels, to increase your power output under low solar radiation conditions.
150%
DC INPUT OVERSIZING
110%
AC OUTPUT OVERLOADING
ΕΠΙΣΚΟΠΗΣΗ
Model
GW4K-DT
Max. Input Voltage (V)
1000
Max. Input Current per MPPT (A)
12.5/12.5
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
4
Nominal Output Voltage (V)
400, 3L/N/PE
Model
GW5K-DT
Max. Input Voltage (V)
1000
Max. Input Current per MPPT (A)
12.5/12.5
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
5
Nominal Output Voltage (V)
400, 3L/N/PE
Model
GW6K-DT
Max. Input Voltage (V)
1000
Max. Input Current per MPPT (A)
12.5/12.5
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
6
Nominal Output Voltage (V)
400, 3L/N/PE
Model
GW8K-DT
Max. Input Voltage (V)
1000
Max. Input Current per MPPT (A)
12.5/12.5
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
8
Nominal Output Voltage (V)
400, 3L/N/PE
Model
GW10KT-DT
Max. Input Voltage (V)
1000
Max. Input Current per MPPT (A)
12.5/12.5
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
10
Nominal Output Voltage (V)
400, 3L/N/PE
Model
GW12KT-DT
Max. Input Voltage (V)
1000
Max. Input Current per MPPT (A)
12.5/25
Number of MPP trackers/Number of Strings per MPPT:
1/2
Weight (kg) :
12
Nominal Output Voltage (V)
400, 3L/N/PE
Model
GW15KT-DT
Max. Input Voltage (V)
1000
Max. Input Current per MPPT (A)
12.5/25
Number of MPP trackers/Number of Strings per MPPT:
1/2
Weight (kg) :
15
Nominal Output Voltage (V)
400, 3L/N/PE
