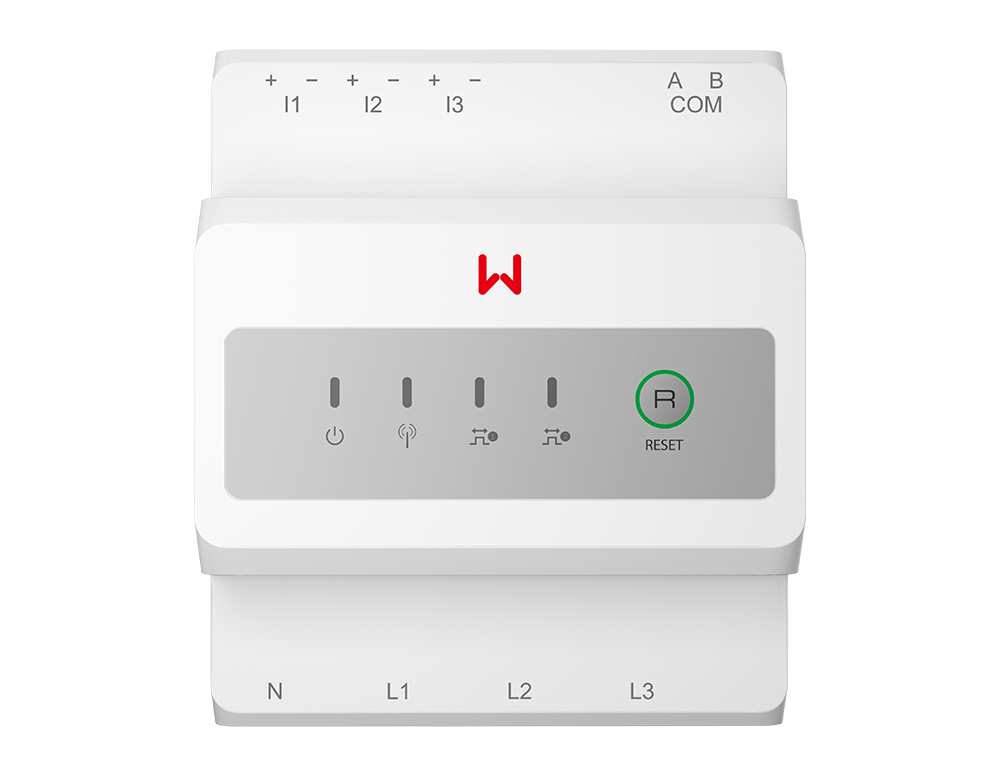

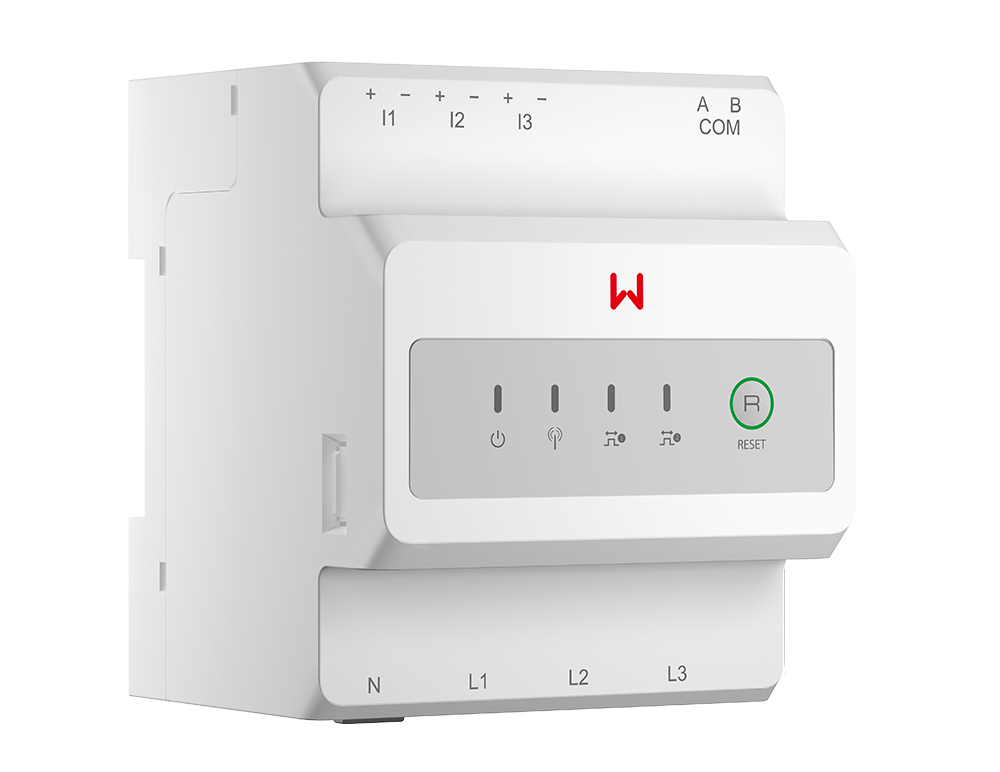

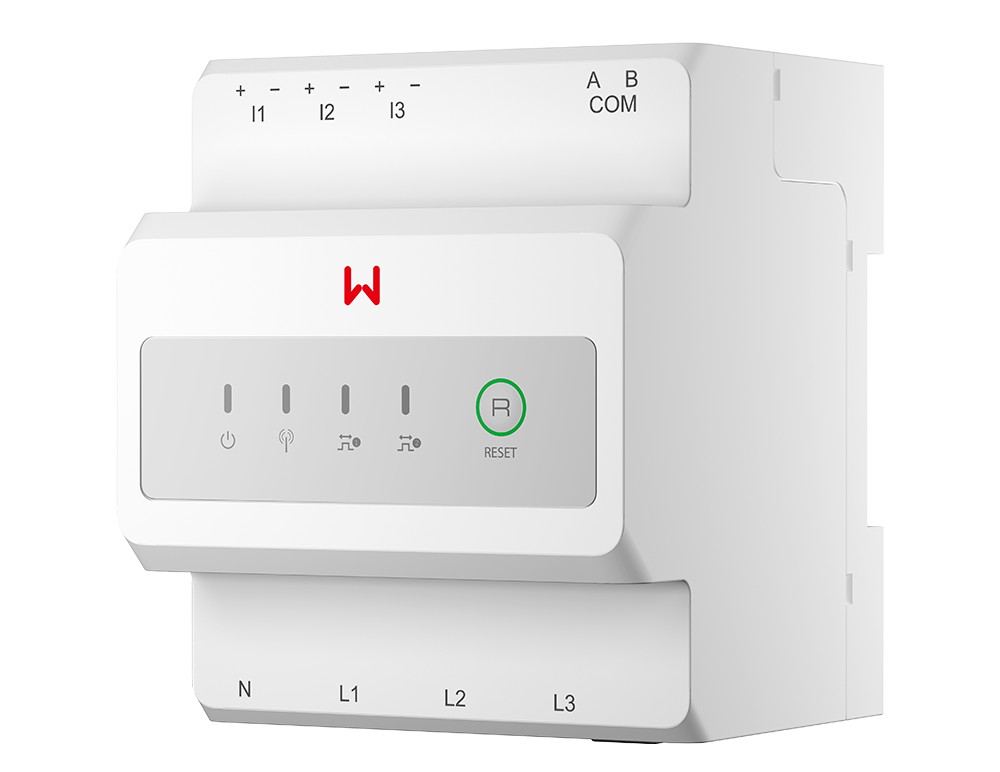

The three-phase smart meter GM330 has been designed to calculate local electricity consumption and demand with high accuracy of 0.5% Class. GM330 offers flexible CT input for large currents supporting the charge control of hybrid inverters and zero-feed applications. With a larger detectable range of voltage (230Vac-400Vac) and current, it is the ultimate cost-saving solution for PV systems with large load consumptions.
Compatible with SEMS Portal
Power control for a single C&I inverter
Easy installation with external CTs
Wide voltage input range
ΕΠΙΣΚΟΠΗΣΗ
Model
GM330
Grid
Three-Phase
Nominal Voltage-Line to N (Vac)
220 / 230
Voltage Range
0.88Un-1.1Un
Power Consumption (W)
＜5
Ingress Protection Rating
IP20
