SMT Series

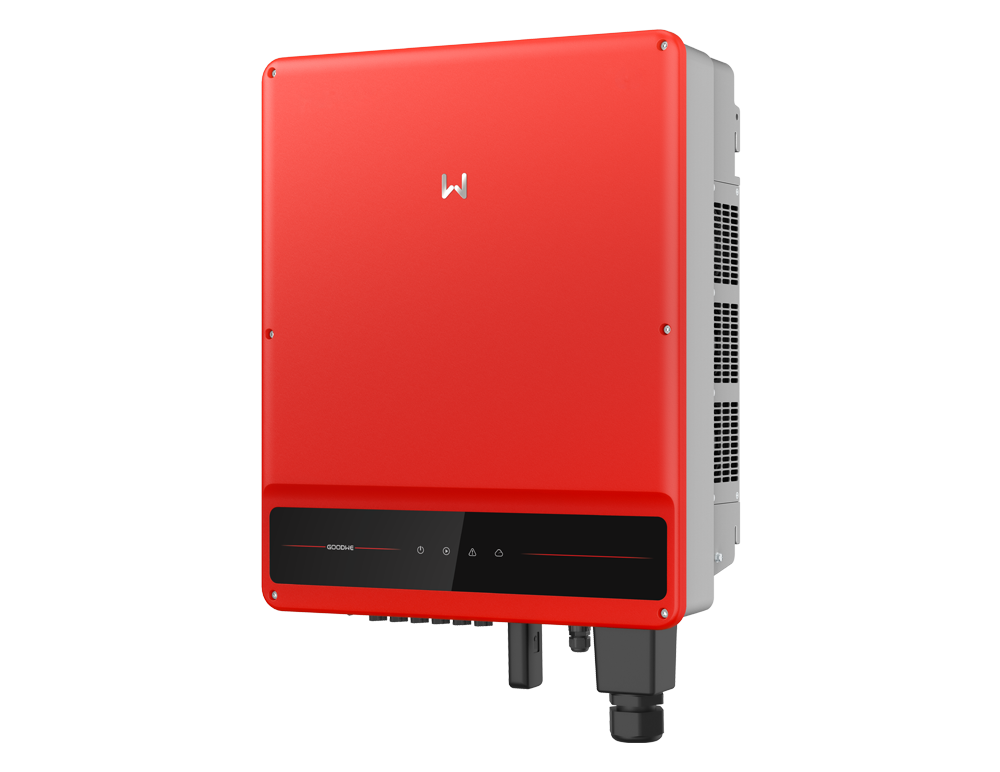

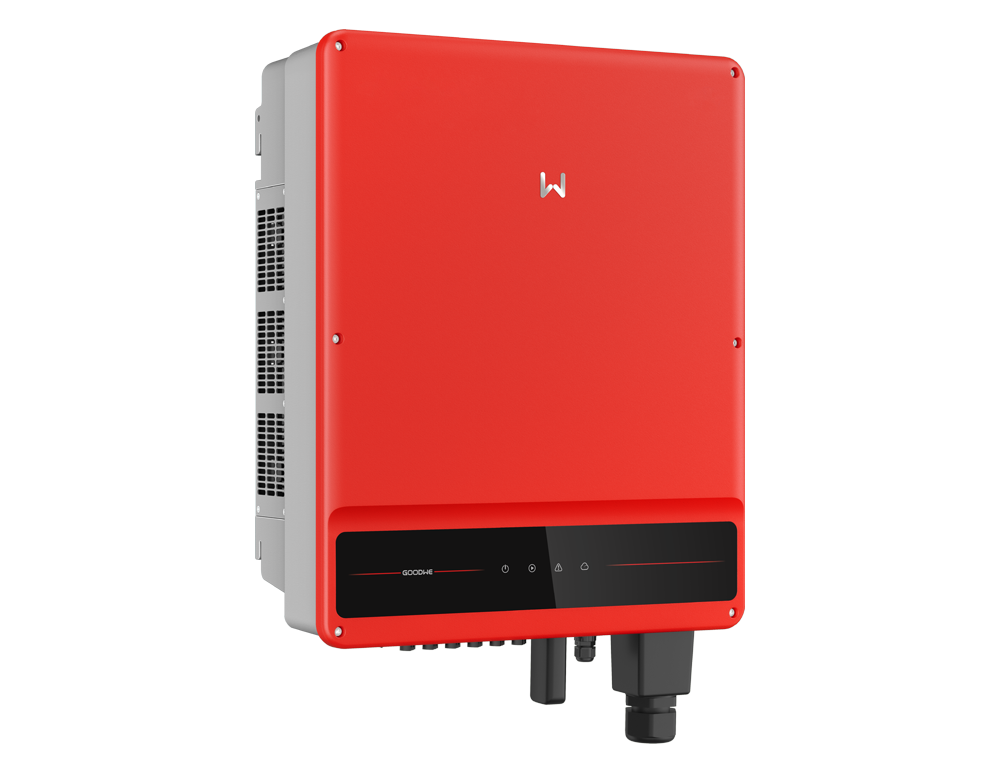

String Inverter | 25 - 36kW | up to 3 MPPTs | Three Phase
DOWNLOAD PDF >>
.png)
String level monitoring
98.8%
40kG
High and reliable energy yield for commercial PV rooftops
Commercial rooftop installations with complex layouts can trust the SMT inverter to facilitate maximum output. With high efficiency levels and up to three MPPT ports, a consistently impressive performance of the PV system is enabled. The inverter is easily transported and installed due it being compact and lightweight, and can be integrated with GoodWe’s Smart Energy Controller SEC1000 for load monitoring and power export limit functionalities.
Smart building integration
Dynamic power export limit
IP66 and C5 protection
Optional Type II Suge Protection & AFCI
Elegant and compact
Easy installation and maintenance
String level monitoring
98.8%
40kG
Maximised energy output
SMT can generate 10% additional power compared to the nominal output, increasing the overall yield. Full load generation up to 45 °C ambient temperature provides maximal generation at in hot areas.
Full power up to 45°C
Increased yield (110% AC power)
Compact design
With a weight of just 40 kg and compact design, the inverter is exceptionally easy to handle.
40kg lightweight
Easy to handle
ΕΠΙΣΚΟΠΗΣΗ
Model
GW36K-MT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
25
Number of MPP trackers/Number of Strings per MPPT:
3/2
Max. Efficiency
98.8%
Nominal Output Voltage (V)
400, 3L/N/PE or 3L/PE
Model
GW30K-MT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
25
Number of MPP trackers/Number of Strings per MPPT:
3/2
Max. Efficiency
98.8%
Nominal Output Voltage (V)
400, 3L/N/PE or 3L/PE
Model
GW25K-MT
Max. Input Voltage (V)
1100
Max. Input Current per MPPT (A)
25
Number of MPP trackers/Number of Strings per MPPT:
3/2
Max. Efficiency
98.7%
Nominal Output Voltage (V)
400, 3L/N/PE or 3L/PE
