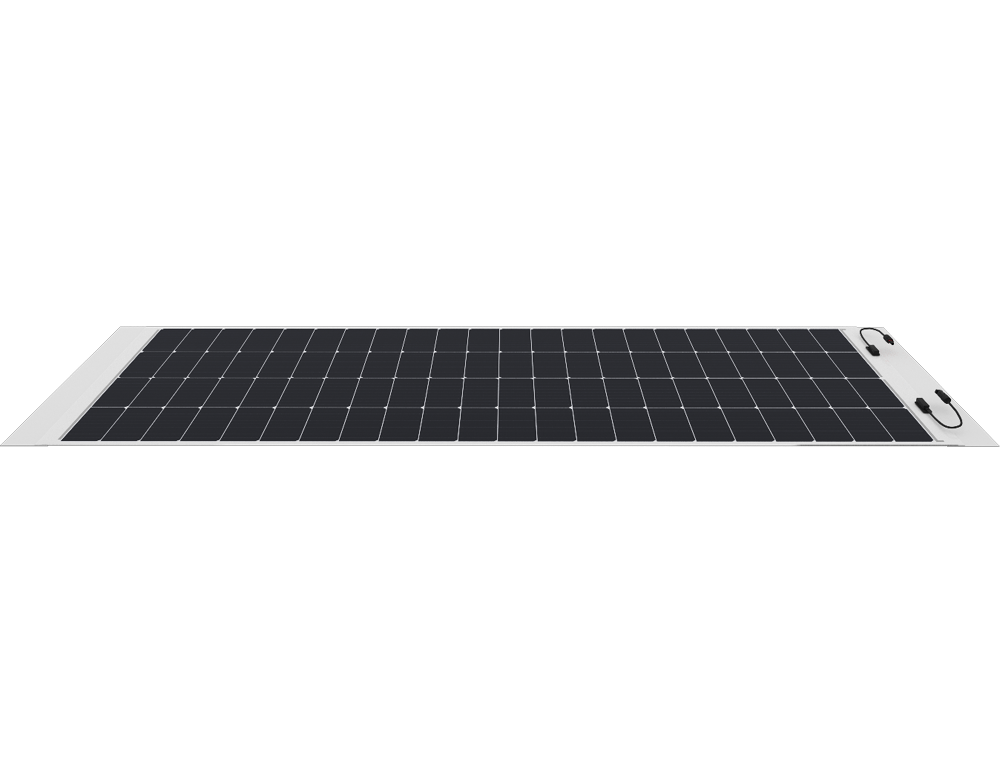

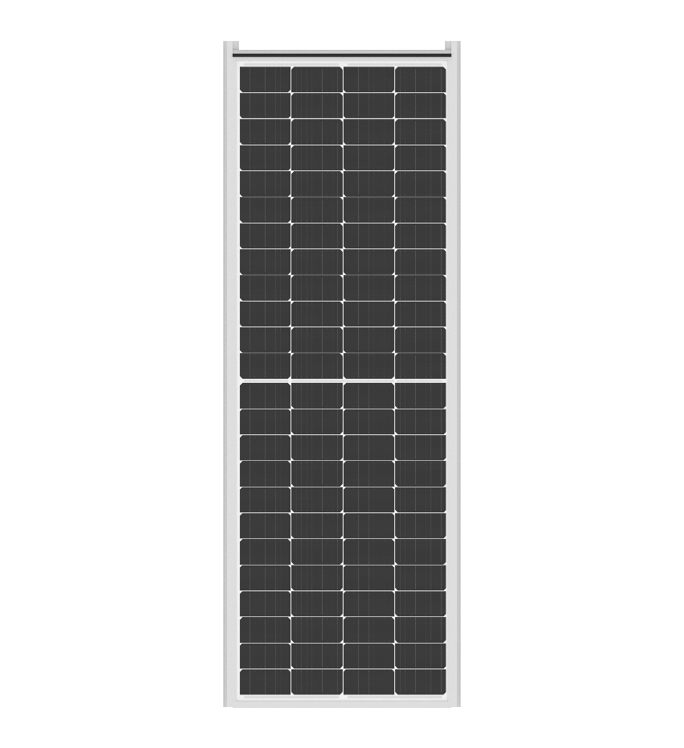

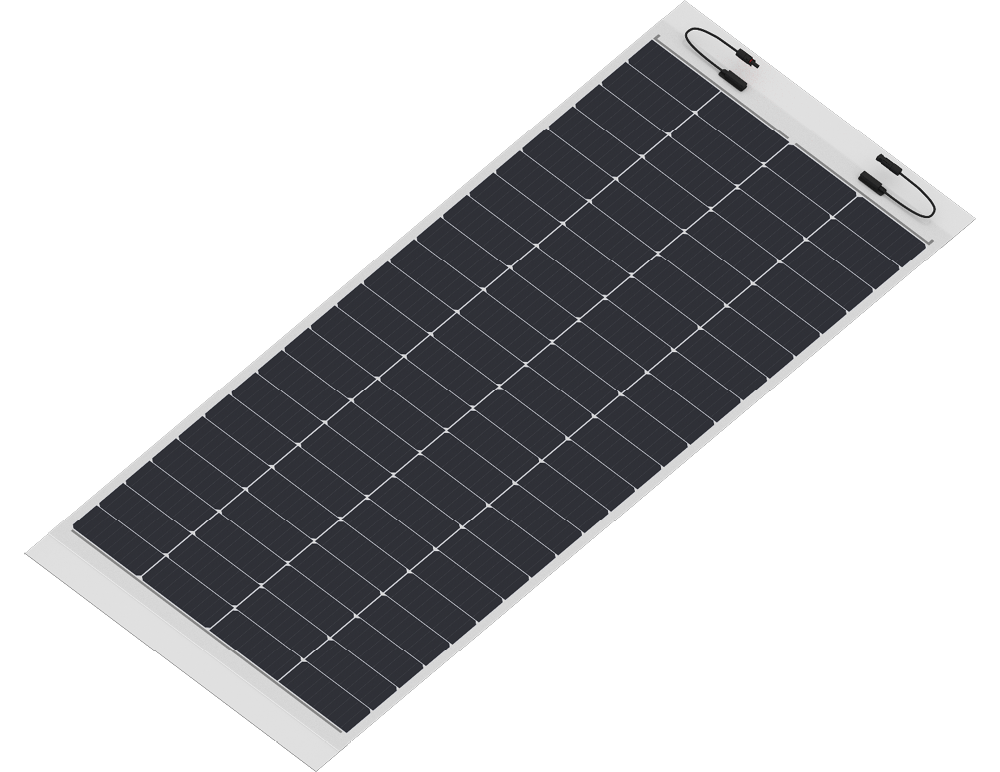

Galaxy Series
BMT-G3/088A | 315W |BMT-G4/088A | 335W | PV Building Material
DOWNLOAD PDF >>
Frameless design
Ultra-lightweight
Galaxy Series is a featherlight BIPV (building integrated photovoltaic) product designed for industrial and commercial applications. With an ultra-lightweight design and frameless surface, Galaxy is especially ideal for low load-bearing and poor waterproofing roofs while ensuring power generation efficiency. It is worth mentioning that the 1.6mm ultra-thin glass is added to Galaxy, which greatly helps improve its ability to resist strong impact from hail and high wind, bringing durability and safety to buildings with all-weather protection. Furthermore, various installation methods and the integrated design also enable rapid and streamlined installation, resulting in significant cost savings out of reduced labor time.
185W/m² Power per square meter
Ultra-lightweight design
High reliability
Various installation methods
Frameless design
Ultra-lightweight
Ultra-lightweight design
The ultra-lightweight design makes it possible for roofs with a low load-bearing capacity to install PV systems compared with conventional PV modules, catering to more application scenarios.
60% lighter than conventional modules
Versatile applications
Various installation methods
Galaxy series can be installed on roofs via three different installation methods that exempt the need for mounting rails. The rapid and streamlined installation process brings visible overall savings on both labor and material costs.
Clamps for standing seam metal roofs
Hot air welding for roofs with TPO waterproofing membrane
Glue for flat roofs
Impact Resistance
The integrated tempered glass provides better mechanical performance to protect cells from deformation by hail and wind, which helps ensure optimal power generation.
1.6
1.6mm reinforced glass integrated
25
Pass the impact test using ice balls with 25mm diameter and a velocity of 22m/s
ΕΠΙΣΚΟΠΗΣΗ
Model
BMT-G4/088A
Size
2116x777×4mm
Weight per Sq Meter
5.6kg
Installation methods
Clamps/Glue/Hot air
Power per Sq Meter
204W
Function configuration
RSD
Model
BMT-G3/088A
Size
2319×777×4mm
Weight per Sq Meter
6kg
Installation methods
Clamps/Glue/Hot air
Power per Sq Meter
174W
Function configuration
RSD
