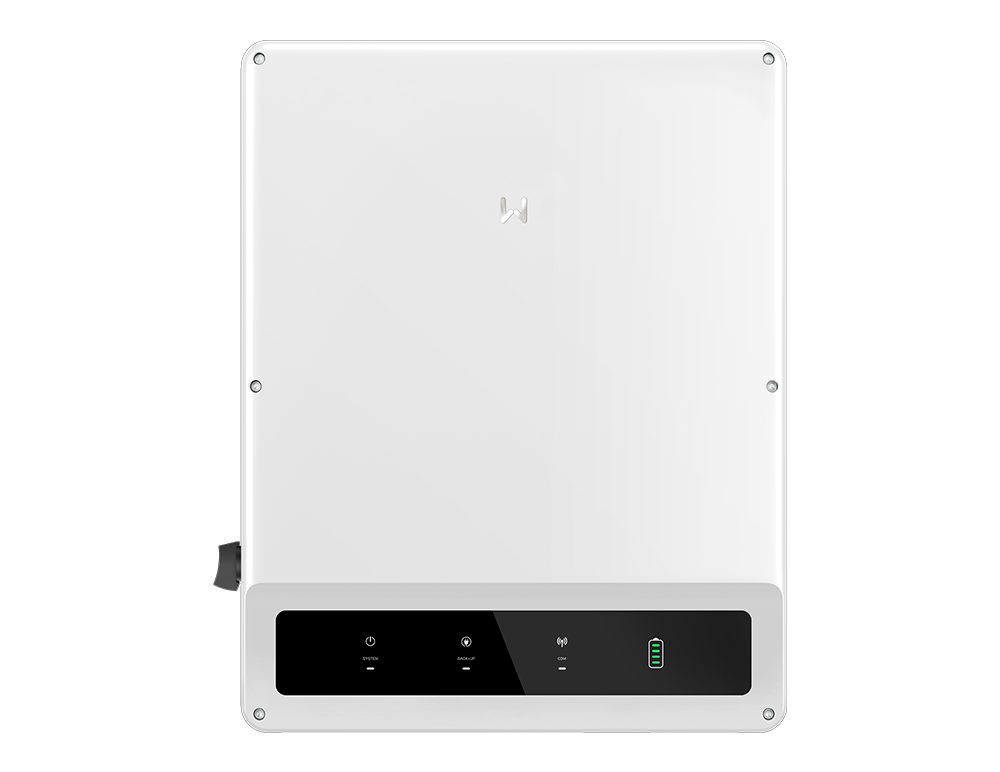

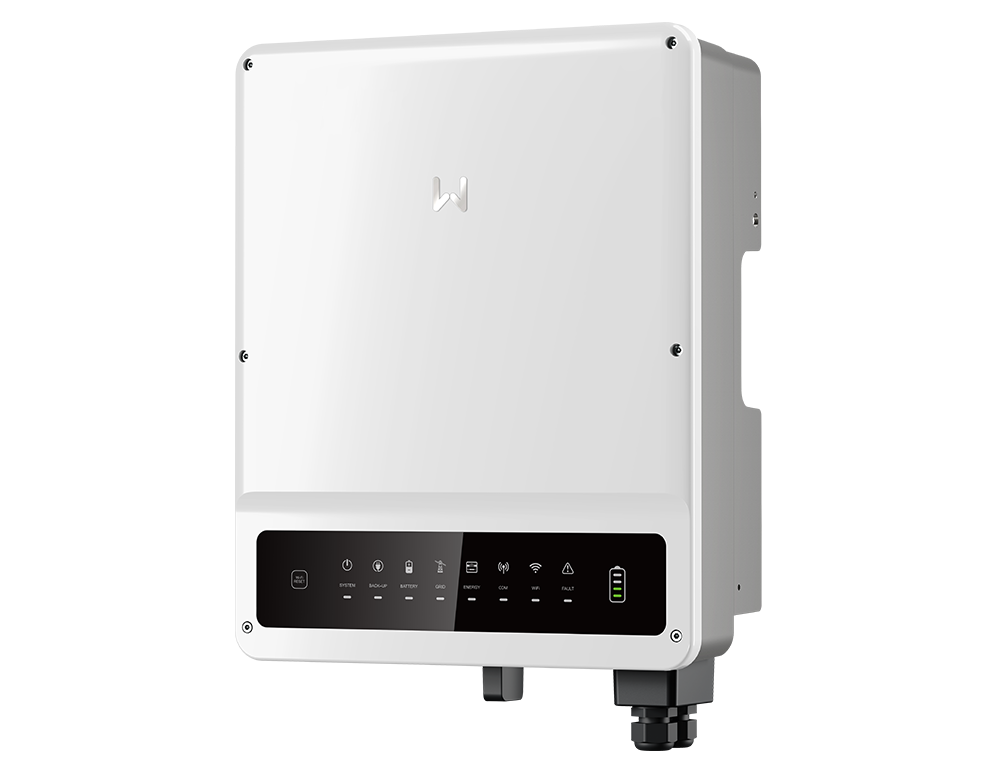

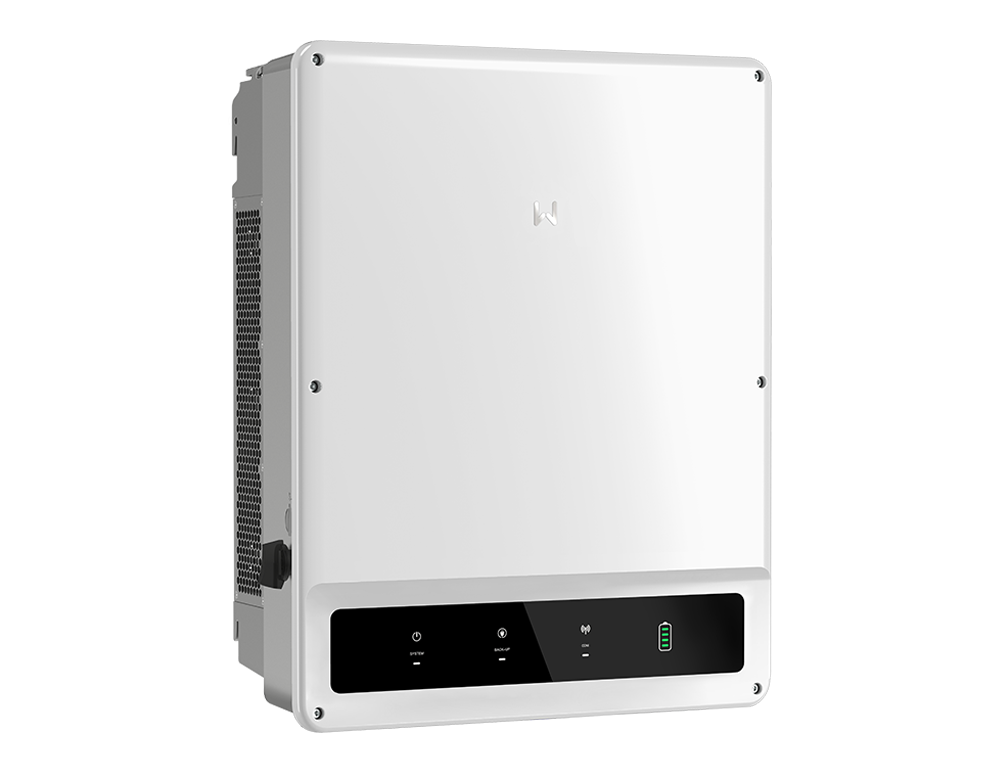

Hybrid Inverter I 15 – 30 kW I Up to 3 MPPTs I Three Phase I HV
DOWNLOAD PDF >>
Up to 36kVA for 60s (back-up)
Robust and powerful
Maximising energy back-up for high power PV rooftops
The trend of increasing PV module yield is influencing overall PV system requirements. At the forefront of development, GoodWe’s ET inverters efficiently meet the needs of powerful solar rooftops to facilitate energy back-up, peak shaving and load management for optimised autonomy and reduced energy cost. The ET series can be combined with a range of battery capacities and brands, including the GoodWe Lynx Home F.
Surge protection Type 2 on DC side
Backup with UPS level switching < 10ms
IP66 ingress protection
Peak shaving
Up to 36kVA for 60s (back-up)
Robust and powerful
Thanks to the in-built DC type II SPD, the ET series can protect DC side from lightning strikes and save the cost of an external device.
Built-in Type II SPD on DC side
IP66 ingress protection
100% unbalanced output to compensate load differences in self-consumption and backup modes. The UPS-level switching ability ensures the power supply security and reduce the risk of outage for critical loads.
Wide battery voltage range (200-800V)
Integrated dynamic power export limit and load monitoring
Supports multiple communication protocols for smart home integration and provides DRY contact for interaction with SG-ready heat pumps, 3rd party EV chargers or other large loads.
100%
100% unbalanced output
10
Backup with UPS level switching < 10ms
Model
GW15K-ET
Battery Voltage Range (V)
200~800
Max. Continuous Charging / Discharging Current(A)
50/50
Max. Input Current per MPPT (A)
30
Max. Apparent Power Output to Utility Grid (VA)
16500
Back-up Nominal Apparent Power (VA)
15000
Model
GW20K-ET
Battery Voltage Range (V)
200~800
Max. Continuous Charging / Discharging Current(A)
50/50
Max. Input Current per MPPT (A)
30
Max. Apparent Power Output to Utility Grid (VA)
22000
Back-up Nominal Apparent Power (VA)
20000
Model
GW25K-ET
Battery Voltage Range (V)
200~800
Max. Continuous Charging / Discharging Current(A)
50×2/50×2
Max. Input Current per MPPT (A)
30
Max. Apparent Power Output to Utility Grid (VA)
27500
Back-up Nominal Apparent Power (VA)
25000
Model
GW29.9K-ET
Battery Voltage Range (V)
200~800
Max. Continuous Charging / Discharging Current(A)
50×2/50×2
Max. Input Current per MPPT (A)
30
Max. Apparent Power Output to Utility Grid (VA)
29900
Back-up Nominal Apparent Power (VA)
29900
